Name: Jaw Coupling S 100 Flex-C Max Bore 38mm Spider Coupling
Brand: Flex-C, India
SKU: JCS100XXXXXX
Price: 506000.0 IDR
Availability: InStock

Jaw Coupling S 100 Flex-C Max Bore 38 mm

Rincian Produk

Model: S 100

Merek: Flex-C, India

Kondisi: Baru

Berat bersih: 1.6 Kg.

Berat: 2,00 kg

Jual Jaw Coupling S 100 Flex-C Max Bore 38mm

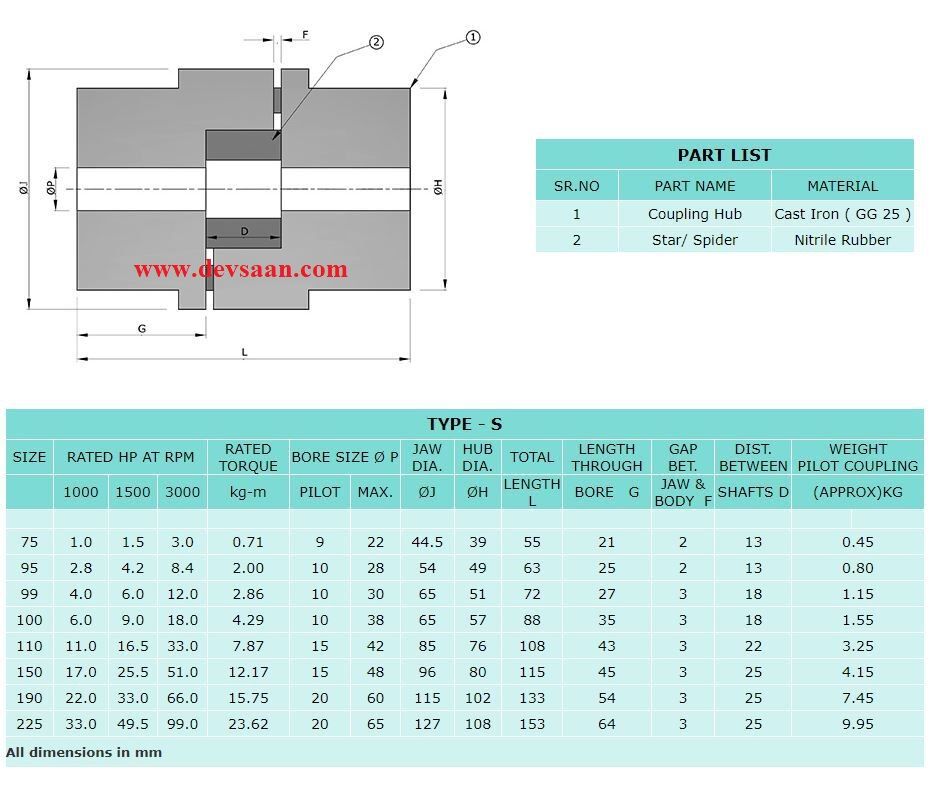

(Dimensi coupling dapat dilihat di brosur terlampir)

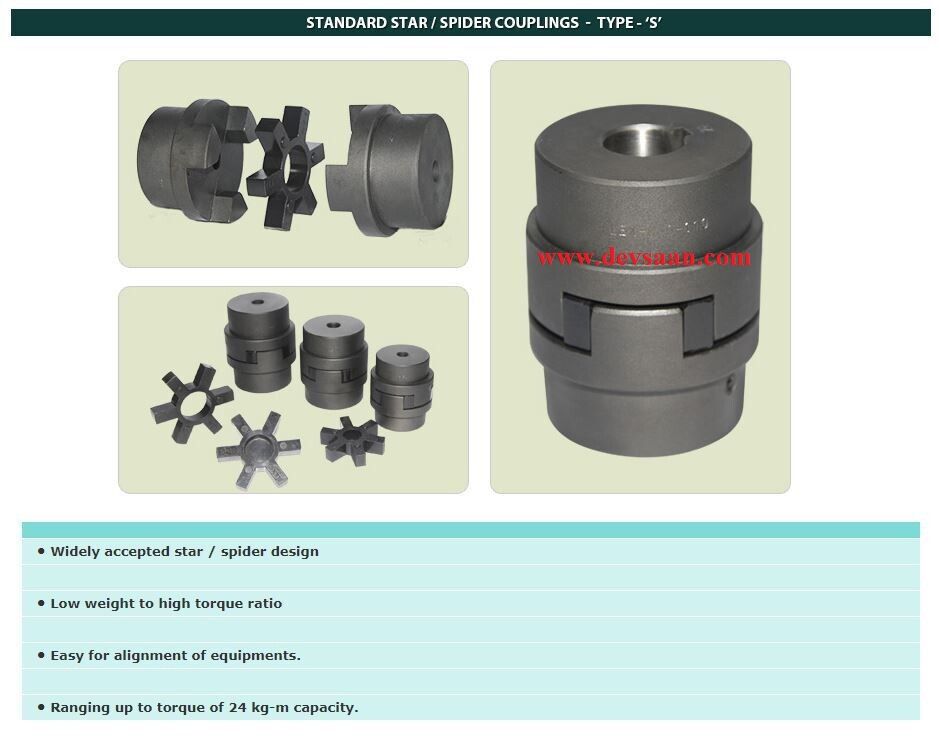

- Standard Star / Spider Coupling

- Low weight to high torque ratio

- Easy for alignment of equipment

- Torque range up to 24 kg-m (235.36 n-m)

Spesifikasi Jaw Coupling S 100 :

Model	100
Coupling type	Jaw Flex
Colour	Black
Rated Hp (kW) : @ Speed 1000 Rpm @ Speed 1500 Rpm @ Speed 3000 Rpm	6 (4,5 kW) 9 (6,75 kW) 18 (13,5 kW)
Rated Torque	4,29 kg-m (42,07 n-m)
Pilot bore size	10 mm
Max bore size	38 mm
Jaw diameter	65 mm
Hub diameter	57 mm
Total length	88 mm
Length through bore	35 mm
Gap between Jaw & Body	3 mm
Distance between shafts	18 mm

Bahan konstruksi Jaw Coupling S 100 :

Coupling hub	Graded Cast Iron (GG 25) Phospated
Star / Spider Rubber Element	Nitrile Rubber (NBR)

Misalignment tolerance :

Parallel misalignment up to 0.4 mm

Angular misalignment up to 1.5 degree

Anda dapat beli produk tersebut langsung dari importir dan distributor tunggal di Indonesia :

PT. Devsaan Industech, LTC Glodok, Jakarta Barat, DKI Jakarta 11180

Coupling & Rubber Element ready stock di perusahaan kami.

Harga sudah termasuk PPN & kami terbitkan Faktur pajak.

Harga sudah termasuk ongkir (*Sesuai harga barang & menggunakan JNE / J&T / Ekspedisi kargo)

Harga sudah termasuk packing.

Hubungi kami di (021) 62308030 / 62308035 atau WA 081388920119 dan 087782736393
