Jaw Coupling S 075 Flex-C Max Bore 22 mm
Kode JCS075XXXXXX
Rp287.500
Dijual
was Rp300.000 Menyimpan 4%
Flexible Coupling Panjang 55 mm
Stok: 20 tersedia
1
Simpan produk ini untuk nanti
Bagikan produk ini dengan temanmu
Jaw Coupling S 075 Flex-C Max Bore 22 mm
Rincian Produk
Model: S 075
Merek: Flex-C, India
Kondisi: Baru
Berat bersih: 450 Gr.
Berat: 1,00 kg
Jual Jaw Coupling S 075 Flex-C Max Bore 22mm

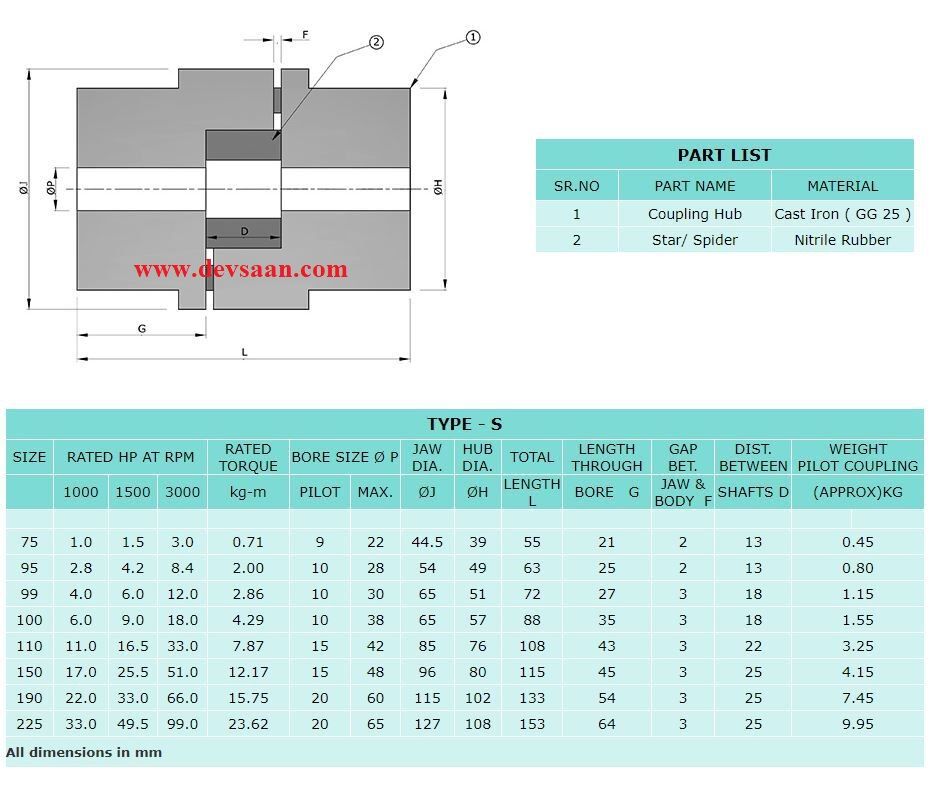

(Dimensi coupling dapat dilihat di brosur terlampir)

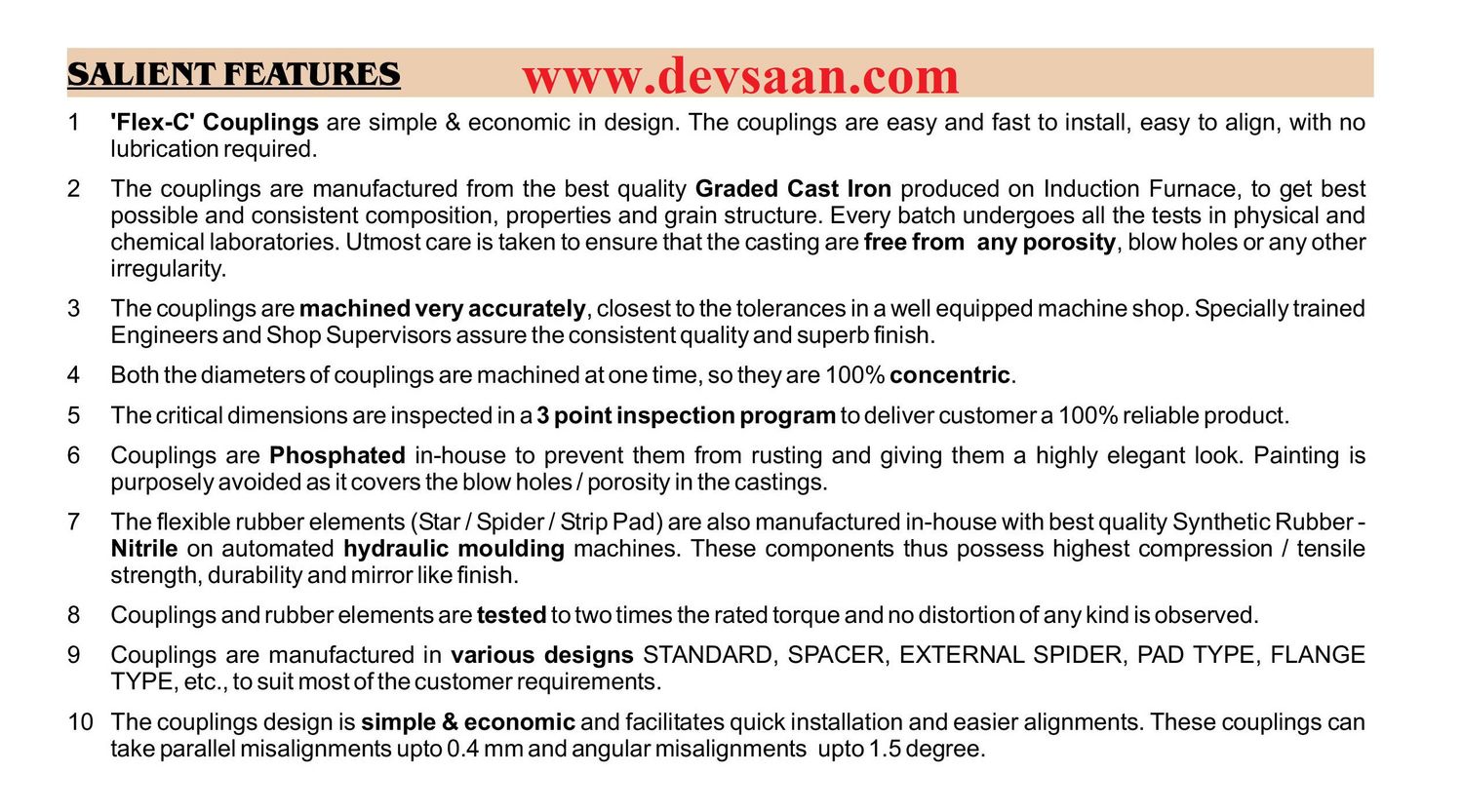

- Standard Star / Spider Coupling
- Low weight to high torque ratio
- Easy for alignment of equipment
- Torque range up to 24 kg-m (235.36 n-m)
Spesifikasi Jaw Coupling S 075 :
| Model | 075 |
| Coupling type | Jaw Flex |
| Colour | Black |
| Rated Hp (kW) : @ Speed 1000 Rpm @ Speed 1500 Rpm @ Speed 3000 Rpm |
1,0 (0,75 kW) 1,5 (1,1 kW) 3,0 (2,2 kW) |
| Rated Torque | 0,71 kg-m (6,96 n-m) |
| Pilot bore size | 9 mm |
| Max bore size | 22 mm |
| Jaw diameter | 44,5 mm |
| Hub diameter | 39 mm |
| Total length | 55 mm |
| Length through bore | 21 mm |
| Gap between Jaw & Body | 2 mm |
| Distance between shafts | 13 mm |
Bahan konstruksi Jaw Coupling S 075 :
| Coupling hub | Graded Cast Iron (GG 25) Phospated |
| Star / Spider Rubber Element | Nitrile Rubber (NBR) |
Misalignment tolerance :
| Parallel misalignment up to 0.4 mm |
| Angular misalignment up to 1.5 degree |
Anda dapat beli produk tersebut langsung dari importir dan distributor tunggal di Indonesia :
PT. Devsaan Industech, LTC Glodok, Jakarta Barat, DKI Jakarta 11180
Anda juga akan suka
Dijual
Diaphragm Pump DP 40 ALT Pompa Diafragma Stroke 1,5"
Diaphragm Pump DP 40 ALT Pompa Diafragma Stroke 1,5"
Pompa Diafragma DP 40 ALT - 1,5" - Aluminium / Teflon - IMPA 59.16.02
was Rp20.400.000
Menyimpan 4%
Rp19.584.000
Dijual
Diaphragm Pump DPB 75 ALN Pompa Diafragma Stroke 3"
Diaphragm Pump DPB 75 ALN Pompa Diafragma Stroke 3"
Pompa Diafragma DPB 75 ALN - 3" - Aluminium / Neoprene - IMPA 59.16.04
was Rp27.000.000
Menyimpan 4%
Rp25.920.000
Dijual
Diaphragm Pump DP 50 ALN Pompa Diafragma Stroke 2"
Diaphragm Pump DP 50 ALN Pompa Diafragma Stroke 2"
Pompa Diafragma DP 50 ALN - 2" - Aluminium / Neoprene - IMPA 59.16.03
was Rp16.500.000
Menyimpan 4%
Rp15.840.000
Dijual
Diaphragm Pump DP 40 ALN Pompa Diafragma Stroke 1,5"
Diaphragm Pump DP 40 ALN Pompa Diafragma Stroke 1,5"
Pompa Diafragma DP 40 ALN - 1,5" - Aluminium / Neoprene - IMPA 59.16.02
was Rp13.200.000
Menyimpan 4%
Rp12.672.000
Dijual

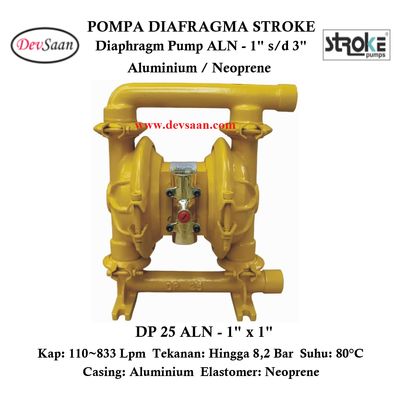

Diaphragm Pump DP 25 ALN Pompa Diafragma Stroke 1"
Diaphragm Pump DP 25 ALN Pompa Diafragma Stroke 1"
Pompa Diafragma DPB 25 ALN - 1" - Aluminium / Neoprene - IMPA 59.16.01
was Rp10.600.000
Menyimpan 4%
Rp10.176.000
Dijual
SS-304 Rotary Hand Operated Drum Pump DDP SS34 HO 1"
SS-304 Rotary Hand Operated Drum Pump DDP SS34 HO 1"
Pompa Drum Putar Tangan SS-304 - Outlet 1"
was Rp10.200.000
Menyimpan 4%
Rp9.792.000
Dijual

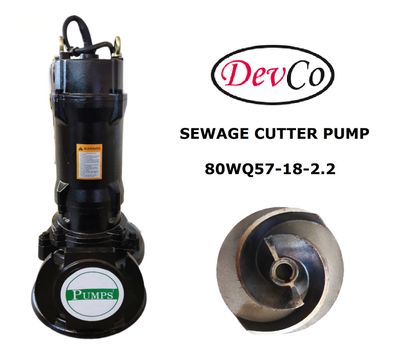

Sewage Cutter Pump 80WQ57-18-2.2 Pompa Celup Air Kotor
Sewage Cutter Pump 80WQ57-18-2.2 Pompa Celup Air Kotor
Sump Pump Electric 3" - 3 Hp 380V 3 Fase
was Rp8.760.000
Menyimpan 4%
Rp8.395.000
Dijual

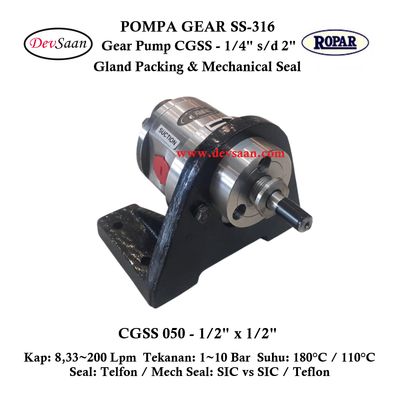

Gear Pump CGSS 050 (GP) Pompa Roda Gigi
Gear Pump CGSS 050 (GP) Pompa Roda Gigi
Gear Pump SS-316 CGSS-050 Bare pump
was Rp9.900.000
Menyimpan 4%
Rp9.504.000
Dijual
Pompa Ulir G25-1 Screw Pump - 32mm x 25mm
Pompa Ulir G25-1 Screw Pump - 32mm x 25mm
was Rp28.080.000
Menyimpan 4%
Rp26.910.000
Dijual

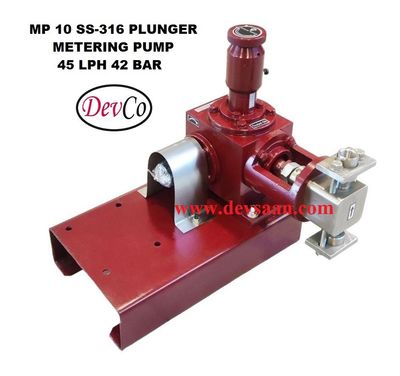

Pompa Dosing MP14542 SS-316 Plunger Metering Pump 45 LPH 42 Bar
