Name: Vane Air Motor 4VM 1.7 Hp Foot Mounting - NPT - ATEX
Brand: Teryair, India
SKU: AMT4VM170NPT
Price: 7680000.0 IDR
Availability: InStock

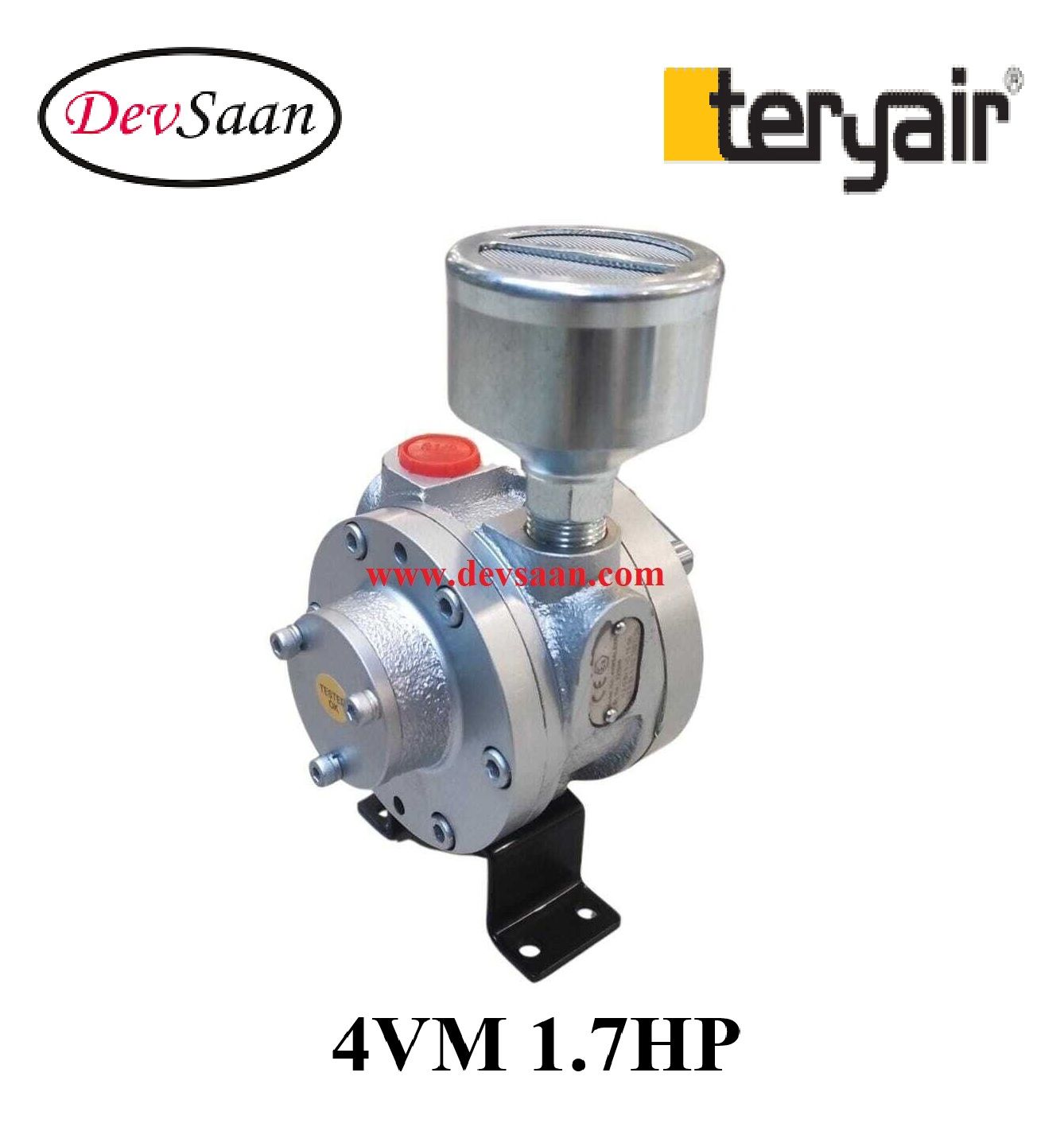

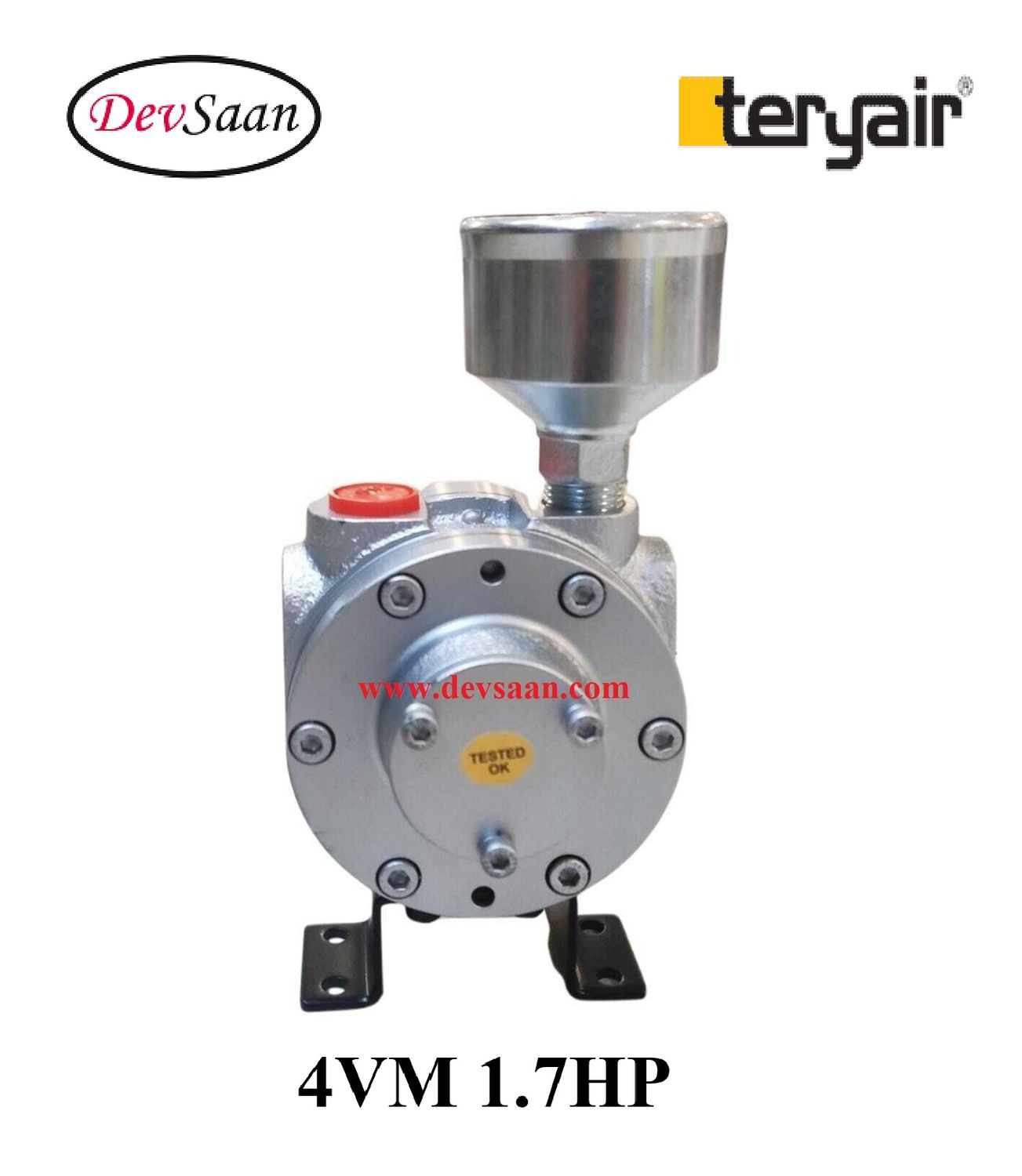

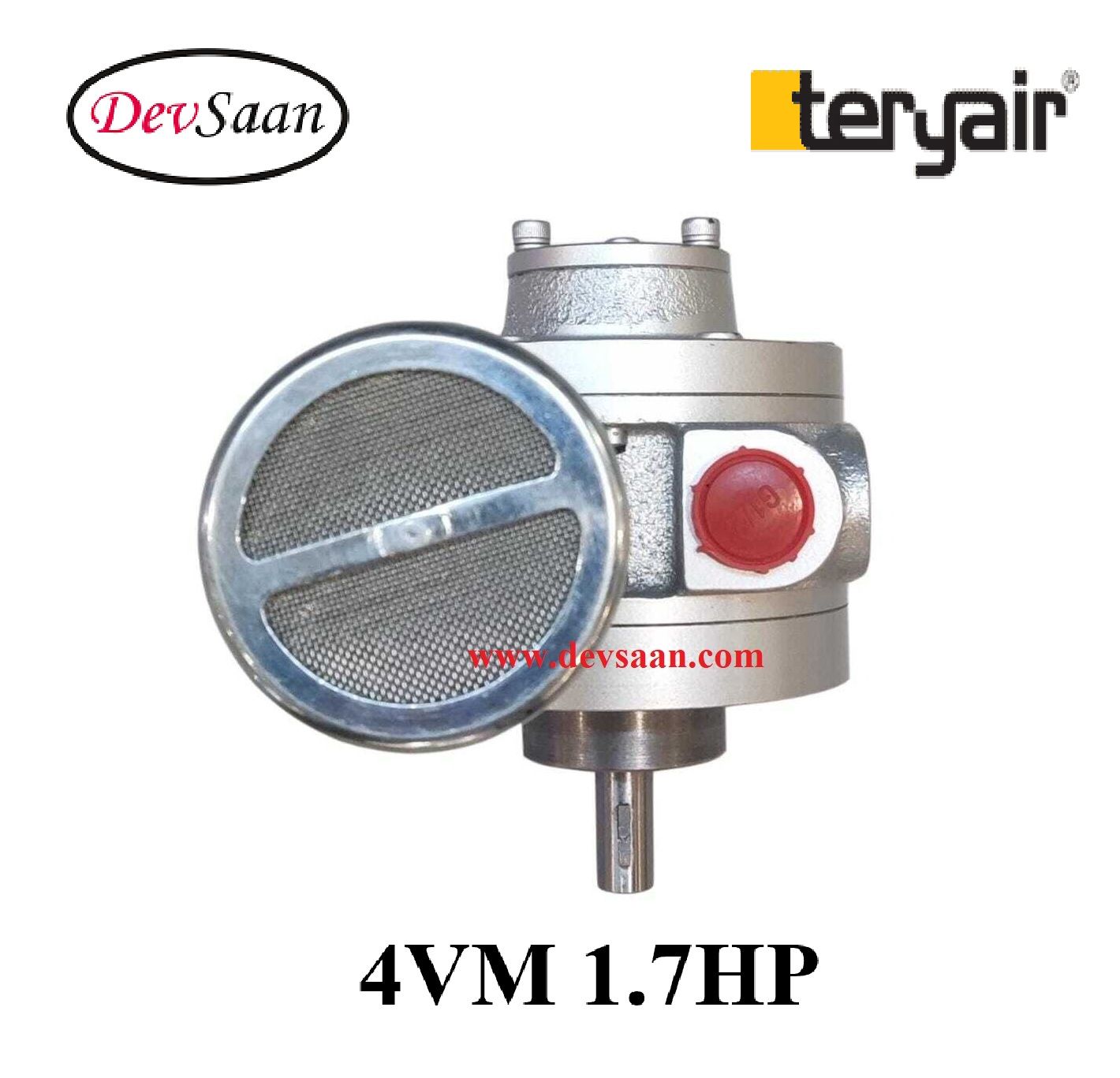

Vane Air Motor 4VM 1.7 Hp

Rincian Produk

Model: 4VMSALEXR

Merek: Teryair, India

Kondisi: Baru

Berat bersih: 4 Kg.

Berat: 6,00 kg

Jual Vane Air Motor 4VM 1.7 Hp Foot Mounting - NPT - ATEX - Lubricated - 4VMSALEXR

TERYAIR Vane Air Motor Indonesia : Importir & Distributor tunggal PT. Devsaan Industech. Kami jual Vane Air Motor dan spare part Repair kit.

Teryair Air Motors are Stall proof, Self Cooling, have a High Power to weight ration, ATEX Explosion proof and Reversible – Thus making them the preferred choice for any of your application. These air motors are versatile workhorses that can be used in a diverse range of applications. In many applications the inherent features of air motors make them more suitable over electric or hydraulic options.

Such compressed Air Motors are used for mixing, lifting and pulling applications in explosive zones. Speed and torque can be varied by simple modulation of input air pressure and air volume. These air motors are suitable because of the many features that they exhibit. For example these air motors are able to be loaded till stall point without damage. Air motors can also tackle variable loads and are capable to be operated in environments where electrical motors are hazardous. One more important feature of compressed air motors is their compact size as compared to electrical motors.

Sertifikasi ATEX Explosion proof : ll 2 GD Ex h IIC T6 Gb Ex h IIIC T85⁰C Db (IP65)

Spesifikasi Vane Air Motor 4VMSALEXR 1.7 Hp :

Ukuran	1/2" x 1/2"
Inlet & Outlet	Drat NPT
Daya	Hingga 1,25 kW (1,7 Hp)
Torsi	Hingga 4 Nm (35 lbs-in)

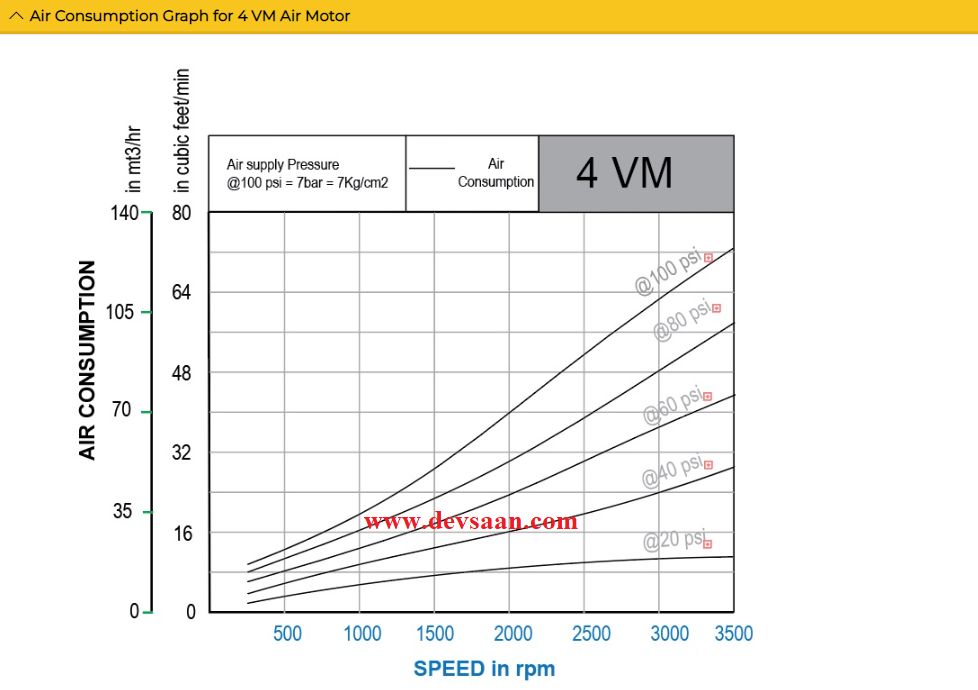

Kebutuhan udara	0 ~ 72 CFM (2 m3 / menit)
Tekanan / Pressure	1,4 ~ 7 Bar (20 ~ 100 PSI)
Kecepatan motor	1000 ~ 3500 Rpm (ATEX Limit)
Mounting	Foot
Tipe motor	Lubricated

Bahan konstruksi Vane Air Motor 4VMSALEXR 1.7 Hp :

Casing

SG Iron

Anda dapat beli produk tersebut langsung dari importir dan distributor tunggal di Indonesia :

PT. Devsaan Industech, LTC Glodok, Jakarta Barat, DKI Jakarta 11180

Produk dan Spare part ready stock di perusahaan kami.

Garansi Satu (1) tahun untuk kualitas dan performa produk.
Garansi termasuk Free repair dan servis di workshop kami.
Garansi tidak termasuk penggantian spare part.

Harga sudah termasuk PPN & kami terbitkan Faktur pajak.

Harga sudah termasuk ongkir (*Sesuai harga barang & menggunakan JNE / J&T / Ekspedisi kargo)

Harga sudah termasuk packing.

Hubungi kami di (021) 62308030 / 62308035 atau WA 081388920119 dan 087782736393
