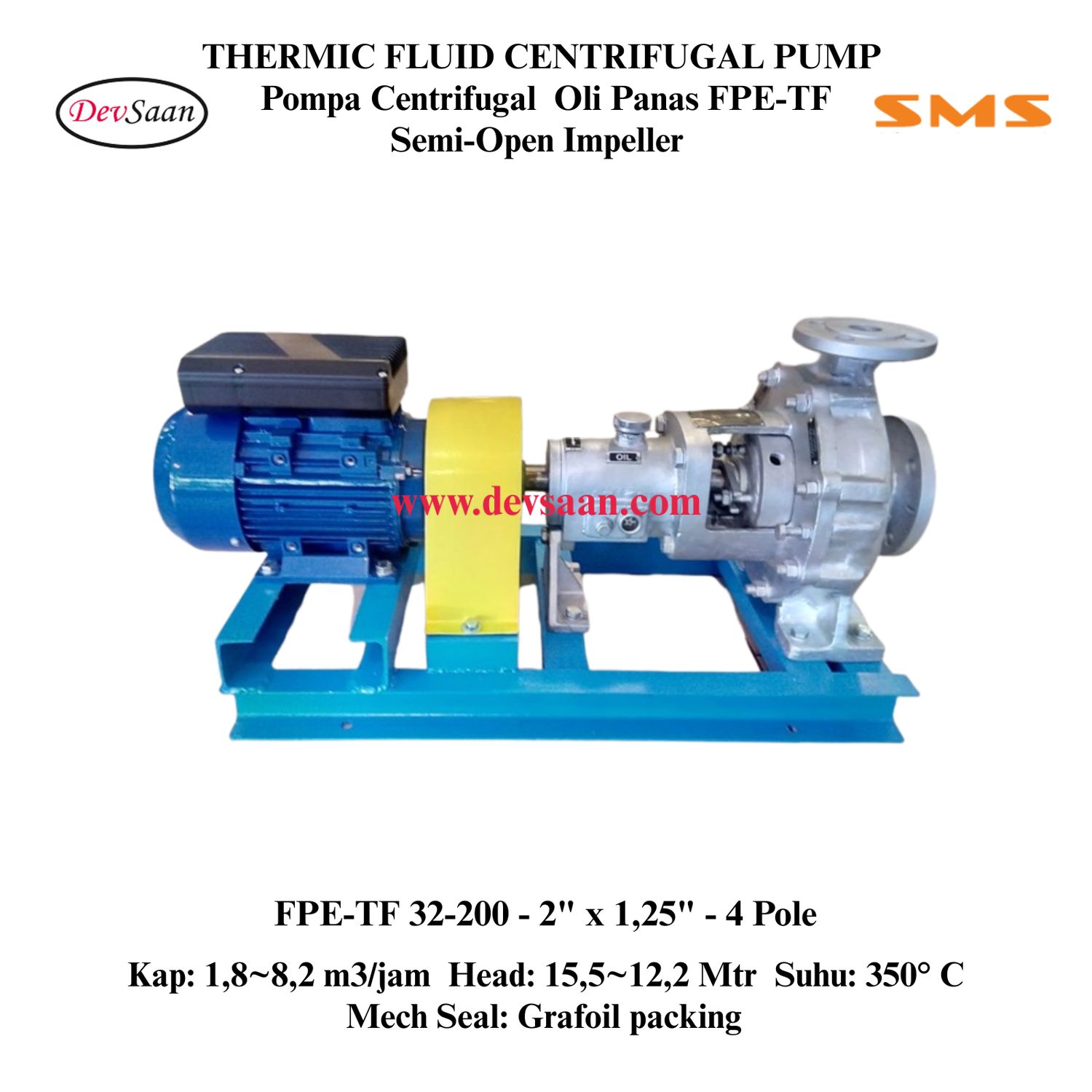

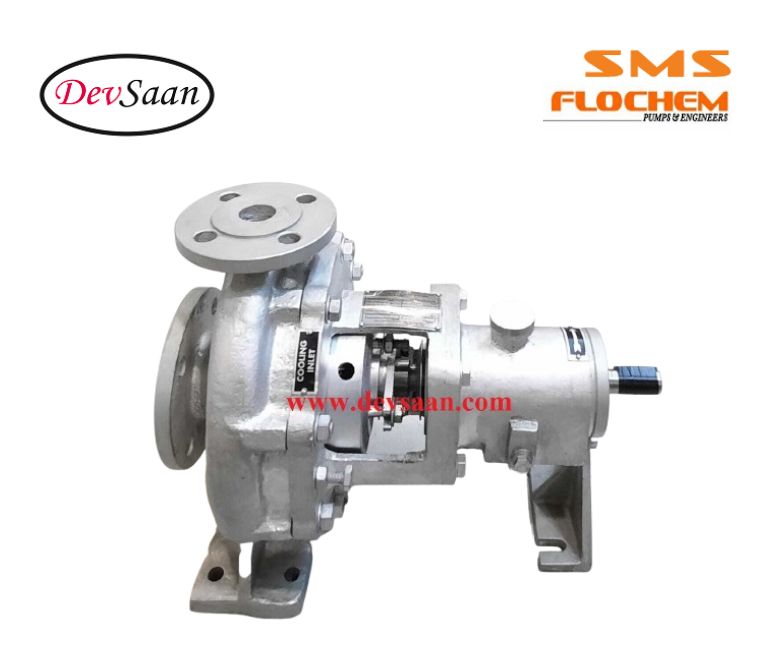

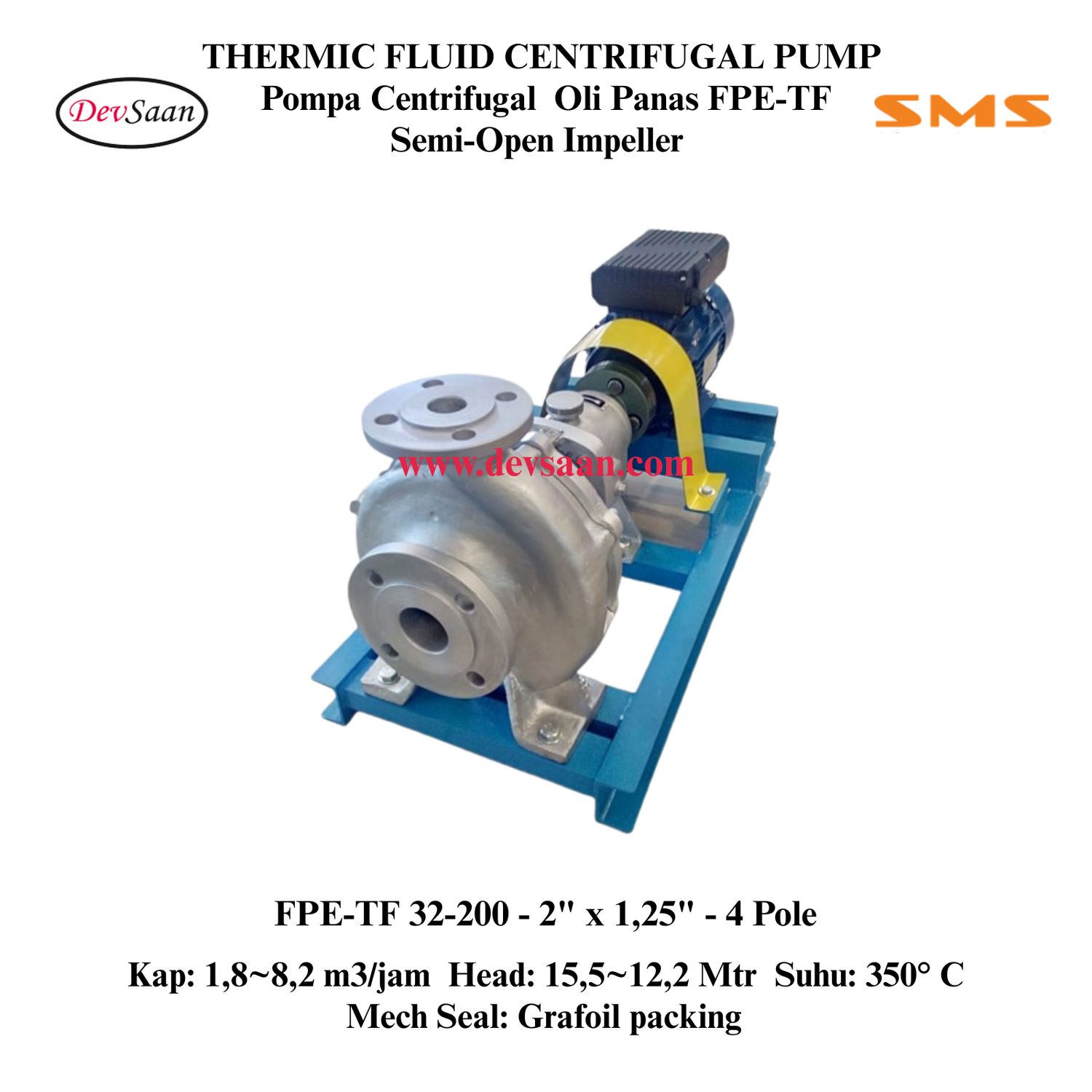

Thermic Fluid Pump FPE-TF 32-200 Pompa Sentrifugal Oli Panas (Complete Set) 4pole
Kode CPFPETF32200T
Rp29.670.000
Hot oil Pump (Grafoil packing) - 2" x 1,25" - 1450 Rpm c/w Elektro Motor 1hp/0,75kw/4pole/B3
Stok: 3 tersedia
1
Simpan produk ini untuk nanti
Bagikan produk ini dengan temanmu

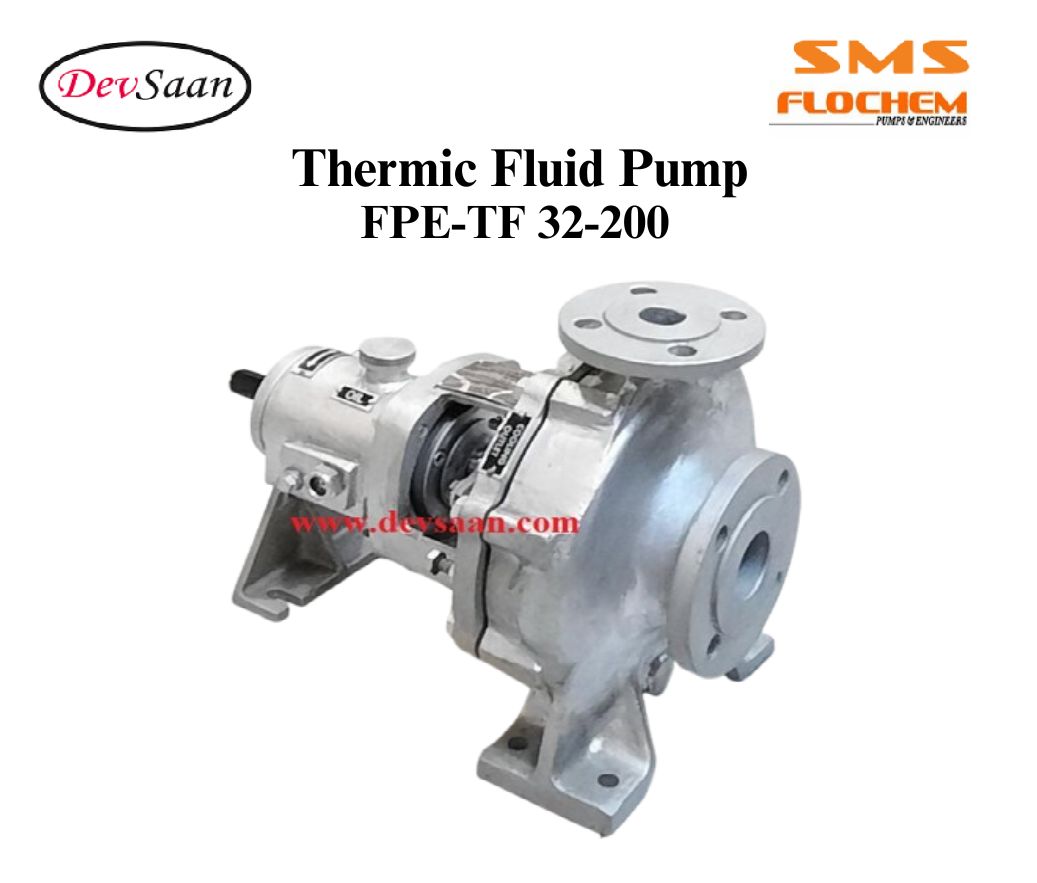

Thermic Fluid Pump FPE-TF 32-200 Pompa Sentrifugal Oli Panas (Complete Set) 4pole
Rincian Produk
Model: FPE-TF 32-200 Complete Set 4pole
Merek: SMS FLOCHEM, India
Kondisi: Baru
Berat bersih: 78 Kg.
Berat: 78,00 kg
Jual Complete Set Thermic Fluid Centrifugal Pump FPE-TF 32-200 c/w Elektro Motor 1hp/0,75kw/4pole/B3
- Terkopel dengan dinamo 1 Hp (0,75 kW) 4 Pole merek Motology (380V 3 Fase) / Bologna (220V 1 Fase) untuk maksimal Berat jenis (Massa jenis) fluida 1,1 (1100 Kg/m3)
- Perakitan 7hari kerja.
- Merek lain dinamo bisa di request.

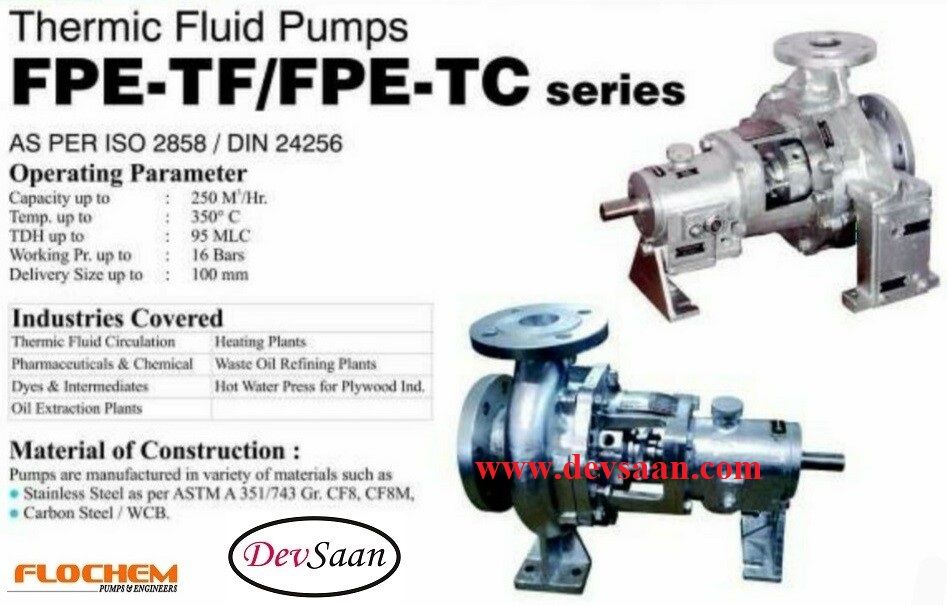

Aplikasi pompa sentrifugal oli panas FPE-TF: Pemakaian di aplikasi pemindahan oli panas & fluida lain panas, pabrik obat & kimia, pabrik pewarna, panrik ekstrak minyak, penyulingan minyak bekas, transfer air panas di pabrik triplek (Kayu lapis) dan pabrik kertas.
Spesifikasi Thermic Fluid Centrifugal Pump FPE-TF 32-200 :
| Ukuran | 2" (50 mm) x 1,25" (32 mm) |
| Inlet & Outlet | Flange ANSI B.16.5 Class #15 |
| Standard pompa | DIN 24256 |

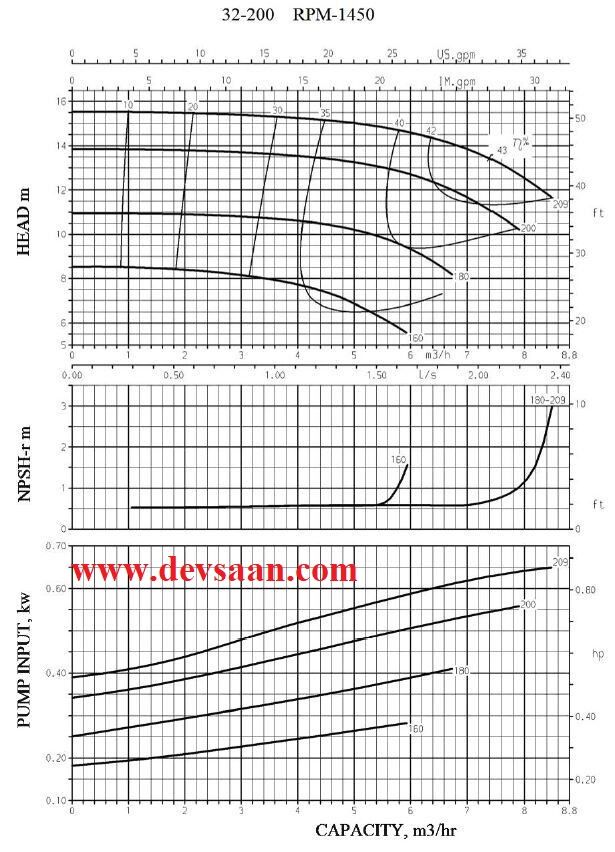

| Kapasitas / Debit (1450 Rpm) Head (Vertikal) (1450 Rpm) |
1,5~8,2 m3/jam 15,5~12,2 Mtr |
| Angkat hisap / Suction lift | Hingga 5 Mtr |
| Berat jenis (Massa jenis) fluida | Hingga 1,1 (1100 Kg/m3) |
| Suhu fluida | Hingga 350° Celsius |
| Shaft seal | Grafoil packing |
| Shaft BkW | 0,65 kW @ 1450 Rpm |
| Kecepatan pompa | 1450 Rpm |
| Sistem perakitan | Horizontal direct inline coupling |
| Kebutuhan daya | 1 Hp (0,75 kW) @ 1450 Rpm |
| Impeller diameter | 209 mm |
| Tipe impeller | Semi-open |
Bahan konstruksi Thermic Fluid Centrifugal Pump FPE-TF 32-200 :
| Casing | Carbon steel (ASTM A 216 Gr. WCB) |
| Impeller | Carbon steel (ASTM A 216 Gr. WCB) |
| Shaft | SS-410 |
| Case fastener / Sealing gasket |
Carbon steel (Non asbestos) |
| Bearing Frame | Cast iron |
| Bearing | Ball bearing (Oil lubricated) |
PT. Devsaan Industech, LTC Glodok, Jakarta Barat, DKI Jakarta 11180
Anda juga akan suka
Dijual

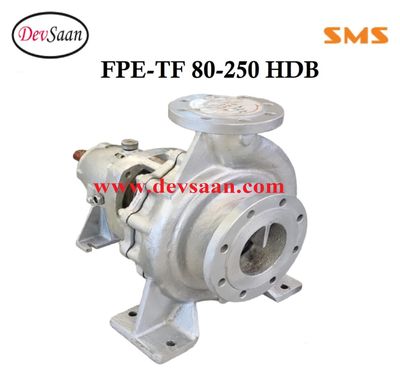

Thermic Fluid Pump FPE-TF 80-250 HDB Pompa Sentrifugal Oli Panas
Thermic Fluid Pump FPE-TF 80-250 HDB Pompa Sentrifugal Oli Panas
Hot oil Pump (Grafoil packing) - 5" x 3" - 1450 Rpm
was Rp47.500.000
Menyimpan 4%
Rp45.600.000
Dijual

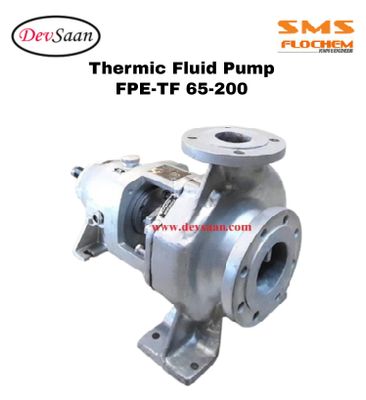

Thermic Fluid Pump FPE-TF 65-200 Pompa Sentrifugal Oli Panas
Thermic Fluid Pump FPE-TF 65-200 Pompa Sentrifugal Oli Panas
Hot oil Pump (Grafoil packing) - 4" x 2,5" - 2900 / 1450 Rpm
was Rp35.200.000
Menyimpan 4%
Rp33.792.000
Dijual

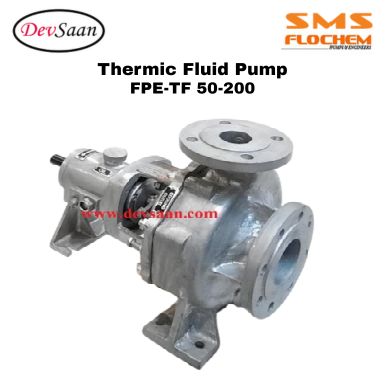

Thermic Fluid Pump FPE-TF 50-200 Pompa Sentrifugal Oli Panas
Thermic Fluid Pump FPE-TF 50-200 Pompa Sentrifugal Oli Panas
Hot oil Pump (Grafoil packing) - 3" x 2" - 2900 / 1450 Rpm
was Rp26.000.000
Menyimpan 4%
Rp24.960.000
Dijual
Thermic Fluid Pump FPE-TF 40-200 Pompa Sentrifugal Oli Panas
Thermic Fluid Pump FPE-TF 40-200 Pompa Sentrifugal Oli Panas
Hot oil Pump (Grafoil packing) - 2,5" x 1,5" - 2900 / 1450 Rpm
was Rp24.800.000
Menyimpan 4%
Rp23.808.000
Dijual
Thermic Fluid Pump FPE-TF 32-200 Pompa Sentrifugal Oli Panas
Thermic Fluid Pump FPE-TF 32-200 Pompa Sentrifugal Oli Panas
Hot oil Pump (Grafoil packing) - 2" x 1,25" - 2900 / 1450 Rpm
was Rp23.200.000
Menyimpan 4%
Rp22.272.000
Dijual
Thermic Fluid Pump FPE-TF 25-160 Pompa Sentrifugal Oli Panas
Thermic Fluid Pump FPE-TF 25-160 Pompa Sentrifugal Oli Panas
Hot oil Pump (Grafoil packing) - 1,5" x 1" - 2900 / 1450 Rpm
was Rp21.000.000
Menyimpan 4%
Rp20.160.000
Dijual

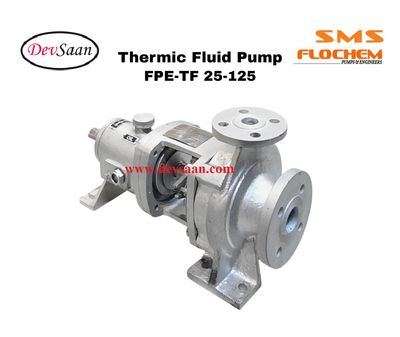

Thermic Fluid Pump FPE-TF 25-125 Pompa Sentrifugal Oli Panas
