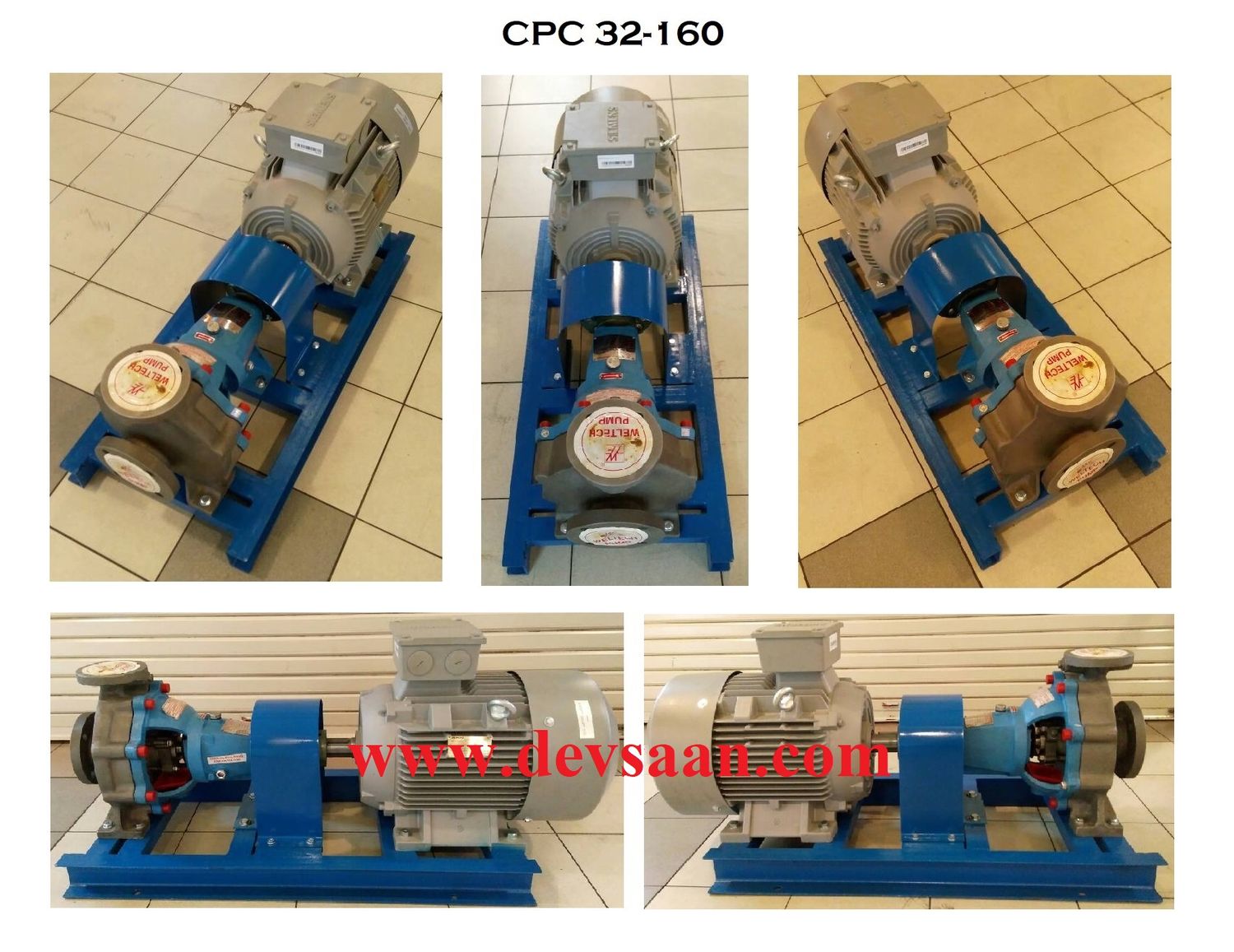

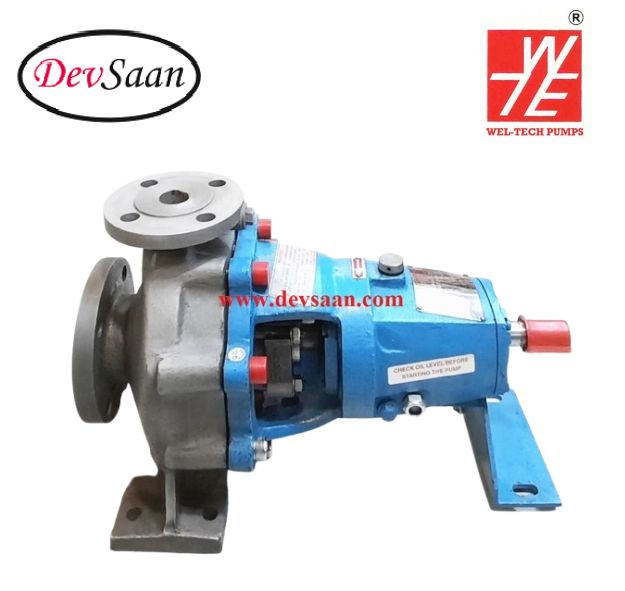

SS-316 Centrifugal Pump End Suction CPC 32-160 Pompa Sentrifugal
Kode CPWPCPC32160
Rp21.160.000
Dijual
was Rp22.080.000 Menyimpan 4%
SS-316 Centrifugal Pump (Mech seal SIC vs SIC / PTFE) - 2" x 1,25" - 1450 Rpm / 2900 Rpm
Stok: 2 tersedia
1
Simpan produk ini untuk nanti
Bagikan produk ini dengan temanmu
SS-316 Centrifugal Pump End Suction CPC 32-160 Pompa Sentrifugal
Rincian Produk
Model: CPC 32-160
Merek: WTE, India
Kondisi: Baru
Berat bersih: 48 Kg.
Berat: 60,00 kg
Jual SS-316 Centrifugal Pump End Suction CPC 32-160 Pompa Sentrifugal
Aplikasi pompa sentrifugal CPC : Aplikasi transfer & sirkulasi air di pabrik, kimia basah, pewarna, pigment, pelapisan, alkali, solvent, thinner, turpentine, descaling, air RO, air DM, air panas, air laut dan lain-lain.

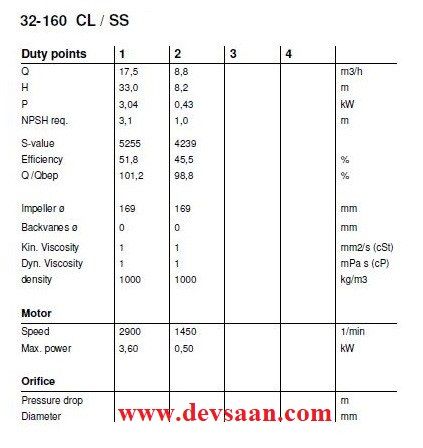

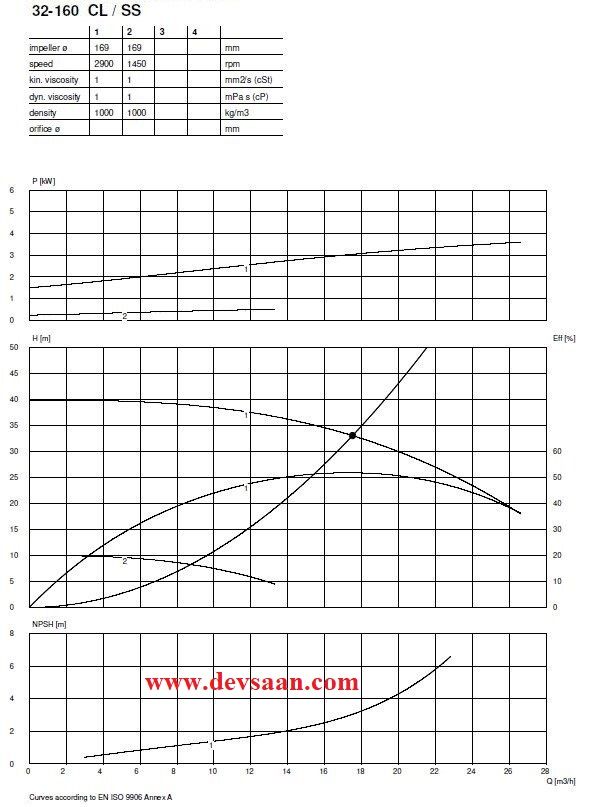

Spesifikasi SS-316 Centrifugal Pump End Suction CPC 32-160 :
| Ukuran | 2" (50 mm) x 1,25" (32 mm) |
| Inlet & Outlet | Flange ANSI B.16.5 Class #15 |
| Kapasitas / Debit (1450 Rpm) Head (Vertikal) (1450 Rpm) |
4~11 m3/jam 9,5~6,5 Mtr |
| Kapasitas / Debit (2900 Rpm) Head (Vertikal) (2900 Rpm) |
8~22 m3/jam 38~27 Mtr |
| Angkat hisap / Suction lift | Hingga 5 Mtr (Dengan Foot valve) |
| Berat jenis (Massa jenis) fluida | Hingga 1,1 (1100 Kg/m3) |
| Suhu fluida | Hingga 90° Celsius |
| Shaft seal | Mechanical seal SIC vs SIC / PTFE Elastomer |
| Shaft BkW | 0,43kW @ 1450 Rpm 3,04 kW @ 2900 Rpm |
| Kecepatan pompa | 1450 Rpm 2900 Rpm |
| Sistem perakitan | Horizontal direct inline coupling |
| Kebutuhan daya | 1 Hp (0,75 kW) @ 1450 Rpm 5,5 Hp (4 kW) @ 2900 Rpm |
| Impeller diameter | 169 mm |
| Tipe impeller | Tertutup (Closed) |
Bahan konstruksi SS-316 Centrifugal Pump End Suction CPC 32-160 :
| Casing | SS-316 |
| Impeller | SS-316 |
| Shaft | SS-410 |
| Sleeve | SS-410 |
| Bearing Frame | Cast iron |
| Bearing | Ball bearing (Oil lubricated) |
