Spacer Coupling SRE 190/140 Flex-C Max Bore 60 mm
Kode JCSRE190140X
Rp5.865.000
Dijual
was Rp6.120.000 Menyimpan 4%
Aluminium Spacer Coupling Panjang 248 mm
Stok: 2 tersedia
1
Simpan produk ini untuk nanti
Bagikan produk ini dengan temanmu

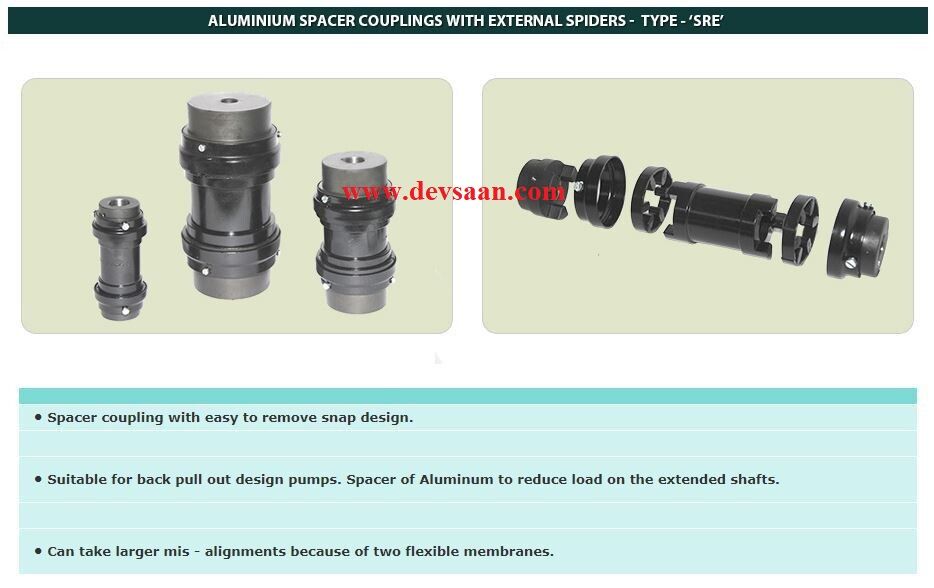

Spacer Coupling SRE 190/140 Flex-C Max Bore 60 mm
Rincian Produk
Model: SRE 190/140
Merek: Flex-C, India
Kondisi: Baru
Berat bersih: 9.8 Kg.
Berat: 13,00 kg
Jual Aluminium Spacer Coupling SRE 190/140 Flex-C Max Bore 60mm

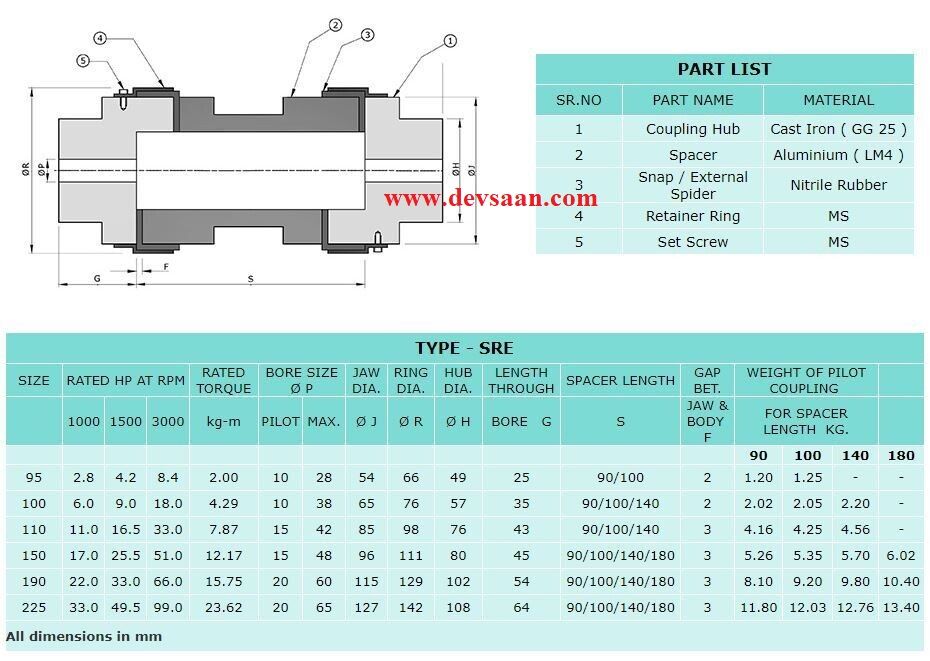

(Dimensi coupling dapat dilihat di brosur terlampir)

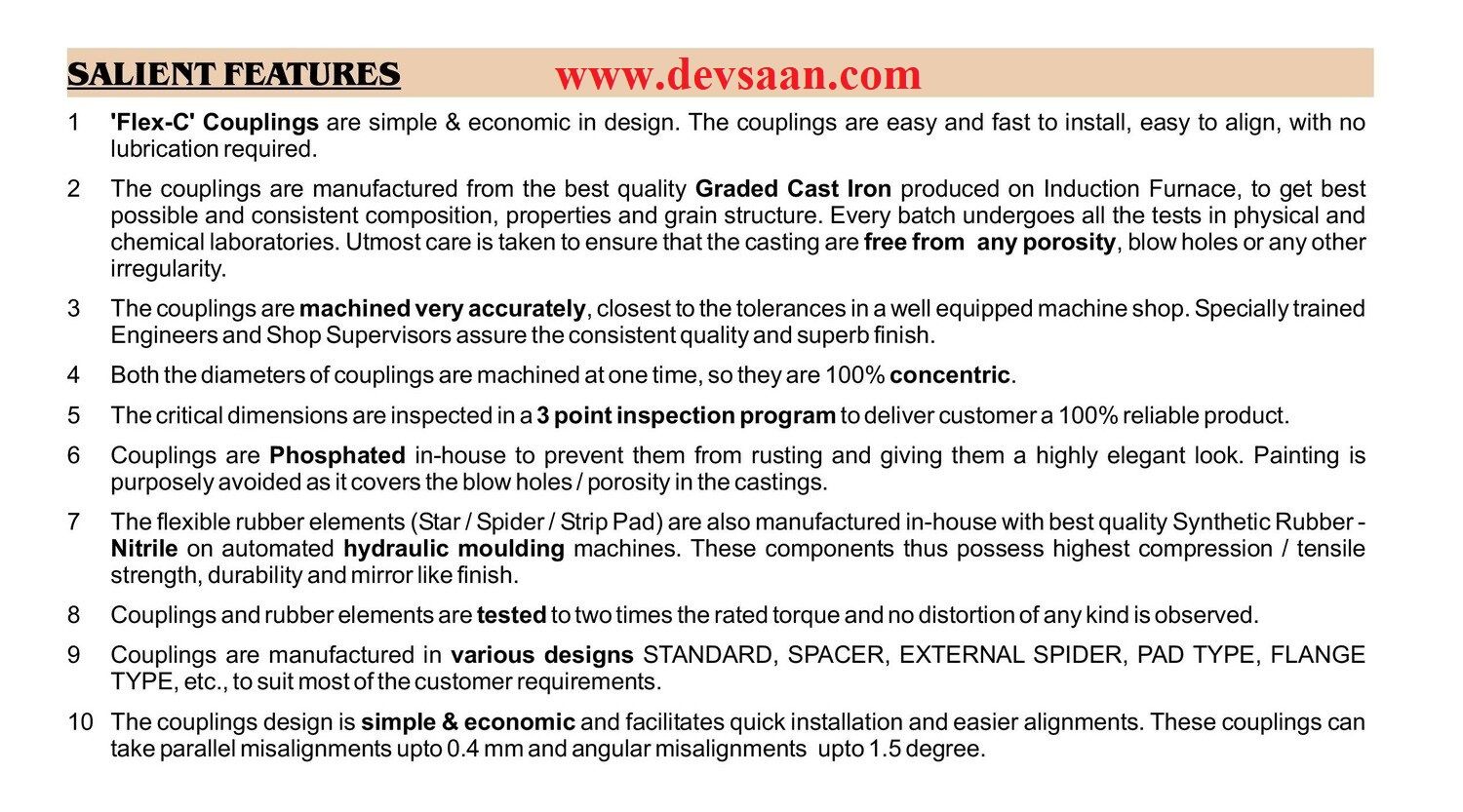

- External Spider / Snap Rubber element fits in the coupling from outside and can be replaced without disturbing the driver & driven unit.
- No downtime for replacement / inspection of rubber element.
- Suitable for back pull out design pumps. Spacer of Aluminum to reduce load on the extended shafts.
- Can take large misalignments because of two flexible membranes.
- Seamless retainer ring provided for proper location & stability of the rubber element.
- Torque range up to 24 kg-m (235.36 n-m)
Spesifikasi Aluminium Spacer Coupling SRE 190/140 :
| Model | 190/140 |
| Coupling type | Spacer |
| Colour | Black |
| Rated Hp (kW) : @ Speed 1000 Rpm @ Speed 1500 Rpm @ Speed 3000 Rpm |
22 (16,5 kW) 33 (24,75 kW) 66 (49,5 kW) |
| Rated Torque | 15,75 kg-m (153,96 n-m) |
| Pilot bore size | 20 mm |
| Max bore size | 60 mm |
| Jaw diameter | 115 mm |
| Ring diameter | 129 mm |
| Hub diameter | 102 mm |
| Total length | 248 mm |
| Length through bore | 54 mm |
| Gap between Jaw & Body | 3 mm |
Bahan konstruksi Aluminium Spacer Coupling SRE 190/140 :
| Coupling hub | Graded Cast Iron (GG 25) Phospated |
| Spacer | Aluminium (LM4) |
| External Spider / Snap Rubber element | Nitrile Rubber (NBR) |
| Retainer ring | MS |
| Set screw | MS |
Misalignment tolerance :
| Parallel misalignment up to 0.4 mm |
| Angular misalignment up to 1.5 degree |
Anda dapat beli produk tersebut langsung dari importir dan distributor tunggal di Indonesia :
PT. Devsaan Industech, LTC Glodok, Jakarta Barat, DKI Jakarta 11180
| Coupling & Rubber Element ready stock di perusahaan kami. |
| Harga sudah termasuk PPN & kami terbitkan Faktur pajak. |
| Harga sudah termasuk ongkir (*Sesuai harga barang & menggunakan JNE / J&T / Ekspedisi kargo) |
| Harga sudah termasuk packing. |
| Hubungi kami di (021) 62308030 / 62308035 atau WA 081388920119 dan 087782736393 |
Anda juga akan suka
Dijual
Spacer Coupling SRE 150/140 Flex-C Max Bore 48 mm
Spacer Coupling SRE 150/140 Flex-C Max Bore 48 mm
Aluminium Spacer Coupling Panjang 230 mm
was Rp3.840.000
Menyimpan 4%
Rp3.680.000
Dijual
Spacer Coupling SRE 150/100 Flex-C Max Bore 48 mm
Spacer Coupling SRE 150/100 Flex-C Max Bore 48 mm
Aluminium Spacer Coupling Panjang 190 mm
was Rp3.240.000
Menyimpan 4%
Rp3.105.000
Dijual
Spacer Coupling SRE 110/140 Flex-C Max Bore 42 mm
Spacer Coupling SRE 110/140 Flex-C Max Bore 42 mm
Aluminium Spacer Coupling Panjang 216 mm
was Rp2.940.000
Menyimpan 4%
Rp2.817.500
Dijual
Spacer Coupling SRE 110/100 Flex-C Max Bore 42 mm
Spacer Coupling SRE 110/100 Flex-C Max Bore 42 mm
Aluminium Spacer Coupling Panjang 186 mm
was Rp2.700.000
Menyimpan 4%
Rp2.587.500
Dijual
Spacer Coupling SRE 100/140 Flex-C Max Bore 38 mm
Spacer Coupling SRE 100/140 Flex-C Max Bore 38 mm
Aluminium Spacer Coupling Panjang 210 mm
was Rp2.160.000
Menyimpan 4%
Rp2.070.000
Dijual
PTV-100 PP - 1" x 1" - 500 mm
PTV-100 PP - 1" x 1" - 500 mm
was Rp8.800.000
Menyimpan 4%
Rp8.448.000
Dijual
Pompa Dosing Solenoid TN0904-M Diaphragm Metering Pump
Pompa Dosing Solenoid TN0904-M Diaphragm Metering Pump
Polyvinyl Chloride Dosing Pump 7.6 LPH 3.5 Bar
was Rp2.900.000
Menyimpan 4%
Rp2.784.000
Dijual

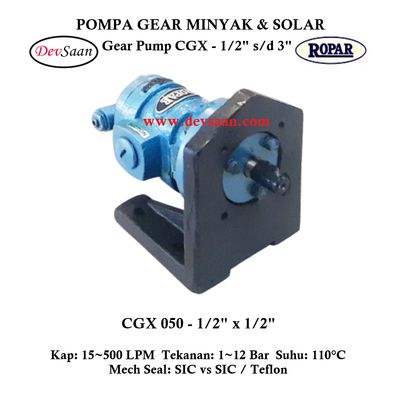

Gear Pump Helikal CGX 050 Pompa Roda Gigi
Gear Pump Helikal CGX 050 Pompa Roda Gigi
Gear Pump Helikal 1/2" x 1/2" MS Bare Pump
was Rp4.500.000
Menyimpan 4%
Rp4.320.000
Dijual

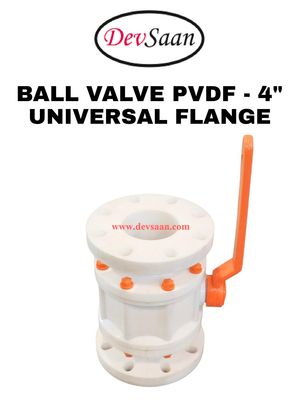

Ball Valve PVDF 4" x 4" Flange Universal Standard
