Spacer Coupling SRE 150/140 Flex-C Max Bore 48 mm
Kode JCSRE150140X
Rp3.680.000
Dijual
was Rp3.840.000 Menyimpan 4%
Aluminium Spacer Coupling Panjang 230 mm
Stok: 3 tersedia
1
Simpan produk ini untuk nanti
Bagikan produk ini dengan temanmu
Spacer Coupling SRE 150/140 Flex-C Max Bore 48 mm
Rincian Produk
Model: SRE 150/140
Merek: Flex-C, India
Kondisi: Baru
Berat bersih: 5.7 Kg.
Berat: 8,00 kg
Jual Aluminium Spacer Coupling SRE 150/140 Flex-C Max Bore 48mm

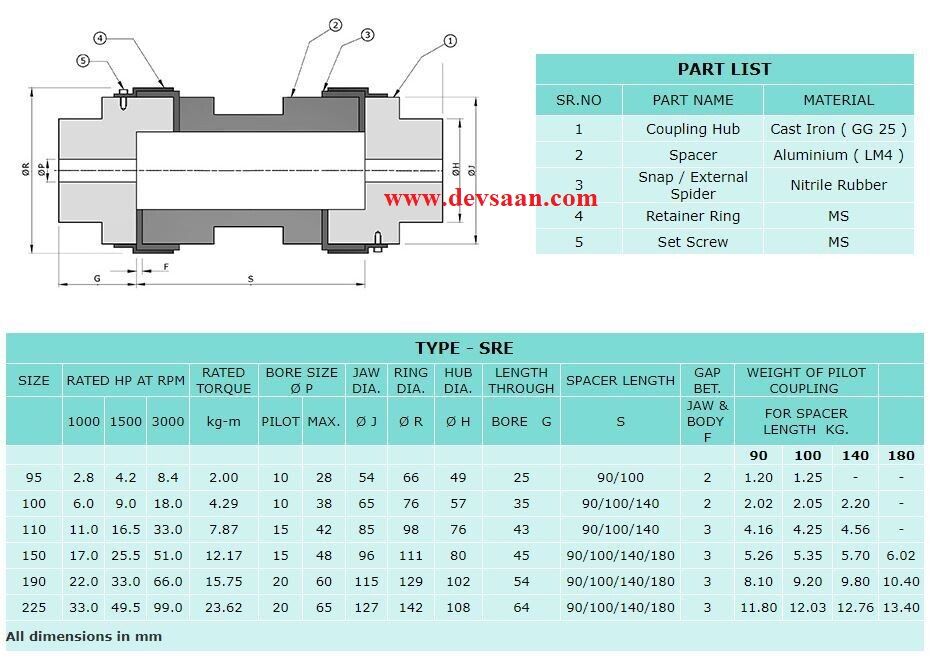

(Dimensi coupling dapat dilihat di brosur terlampir)

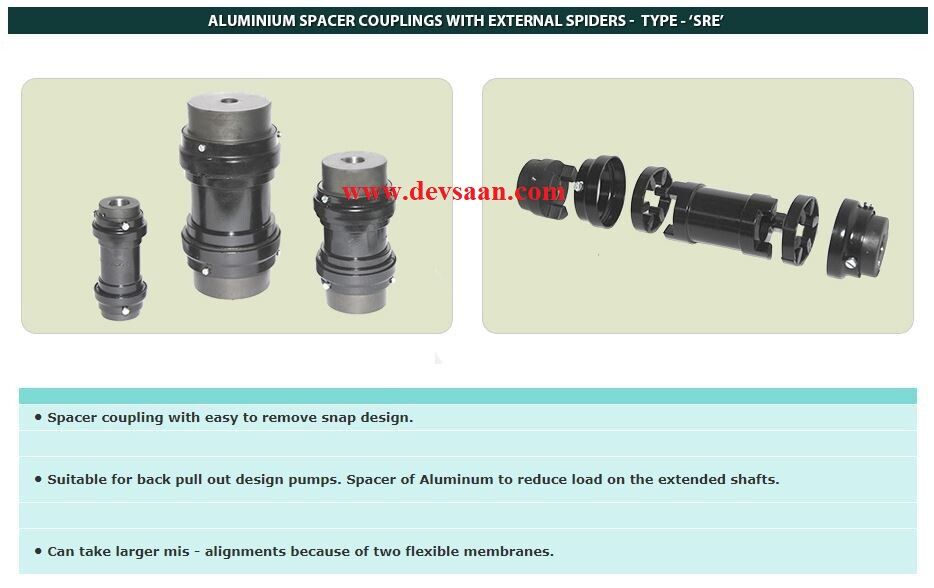

- External Spider / Snap Rubber element fits in the coupling from outside and can be replaced without disturbing the driver & driven unit.
- No downtime for replacement / inspection of rubber element.
- Suitable for back pull out design pumps. Spacer of Aluminum to reduce load on the extended shafts.
- Can take large misalignments because of two flexible membranes.
- Seamless retainer ring provided for proper location & stability of the rubber element.
- Torque range up to 24 kg-m (235.36 n-m)
Spesifikasi Aluminium Spacer Coupling SRE 150/140 :
| Model | 150/140 |
| Coupling type | Spacer |
| Colour | Black |
| Rated Hp (kW) : @ Speed 1000 Rpm @ Speed 1500 Rpm @ Speed 3000 Rpm |
17 (12,75 kW) 25,5 (19,125 kW) 51 (38,25 kW) |
| Rated Torque | 12,17 kg-m (119,35 n-m) |
| Pilot bore size | 15 mm |
| Max bore size | 48 mm |
| Jaw diameter | 96 mm |
| Ring diameter | 111 mm |
| Hub diameter | 80 mm |
| Total length | 230 mm |
| Length through bore | 45 mm |
| Gap between Jaw & Body | 3 mm |
Bahan konstruksi Aluminium Spacer Coupling SRE 150/140 :
| Coupling hub | Graded Cast Iron (GG 25) Phospated |
| Spacer | Aluminium (LM4) |
| External Spider / Snap Rubber element | Nitrile Rubber (NBR) |
| Retainer ring | MS |
| Set screw | MS |
Misalignment tolerance :
| Parallel misalignment up to 0.4 mm |
| Angular misalignment up to 1.5 degree |
Anda dapat beli produk tersebut langsung dari importir dan distributor tunggal di Indonesia :
PT. Devsaan Industech, LTC Glodok, Jakarta Barat, DKI Jakarta 11180
| Coupling & Rubber Element ready stock di perusahaan kami. |
| Harga sudah termasuk PPN & kami terbitkan Faktur pajak. |
| Harga sudah termasuk ongkir (*Sesuai harga barang & menggunakan JNE / J&T / Ekspedisi kargo) |
| Harga sudah termasuk packing. |
| Hubungi kami di (021) 62308030 / 62308035 atau WA 081388920119 dan 087782736393 |
Anda juga akan suka
Dijual
Spacer Coupling SRE 150/100 Flex-C Max Bore 48 mm
Spacer Coupling SRE 150/100 Flex-C Max Bore 48 mm
Aluminium Spacer Coupling Panjang 190 mm
was Rp3.240.000
Menyimpan 4%
Rp3.105.000
Dijual
Spacer Coupling SRE 110/140 Flex-C Max Bore 42 mm
Spacer Coupling SRE 110/140 Flex-C Max Bore 42 mm
Aluminium Spacer Coupling Panjang 216 mm
was Rp2.940.000
Menyimpan 4%
Rp2.817.500
Dijual

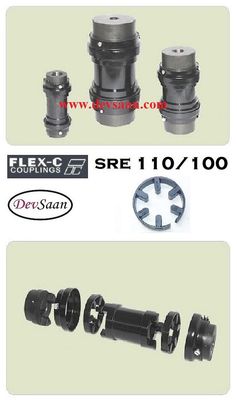

Spacer Coupling SRE 110/100 Flex-C Max Bore 42 mm
Spacer Coupling SRE 110/100 Flex-C Max Bore 42 mm
Aluminium Spacer Coupling Panjang 186 mm
was Rp2.700.000
Menyimpan 4%
Rp2.587.500
Dijual

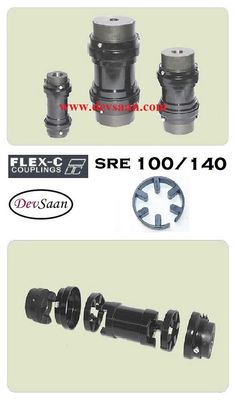

Spacer Coupling SRE 100/140 Flex-C Max Bore 38 mm
