Spacer Coupling SRE 100/140 Flex-C Max Bore 38 mm
Kode JCSRE100140X
Rp2.070.000
Dijual
was Rp2.160.000 Menyimpan 4%
Aluminium Spacer Coupling Panjang 210 mm
Stok: 4 tersedia
1
Simpan produk ini untuk nanti
Bagikan produk ini dengan temanmu
Spacer Coupling SRE 100/140 Flex-C Max Bore 38 mm
Rincian Produk
Model: SRE 100/140
Merek: Flex-C, India
Kondisi: Baru
Berat bersih: 2.2 Kg.
Berat: 3,00 kg
Jual Aluminium Spacer Coupling SRE 100/140 Flex-C Max Bore 38mm

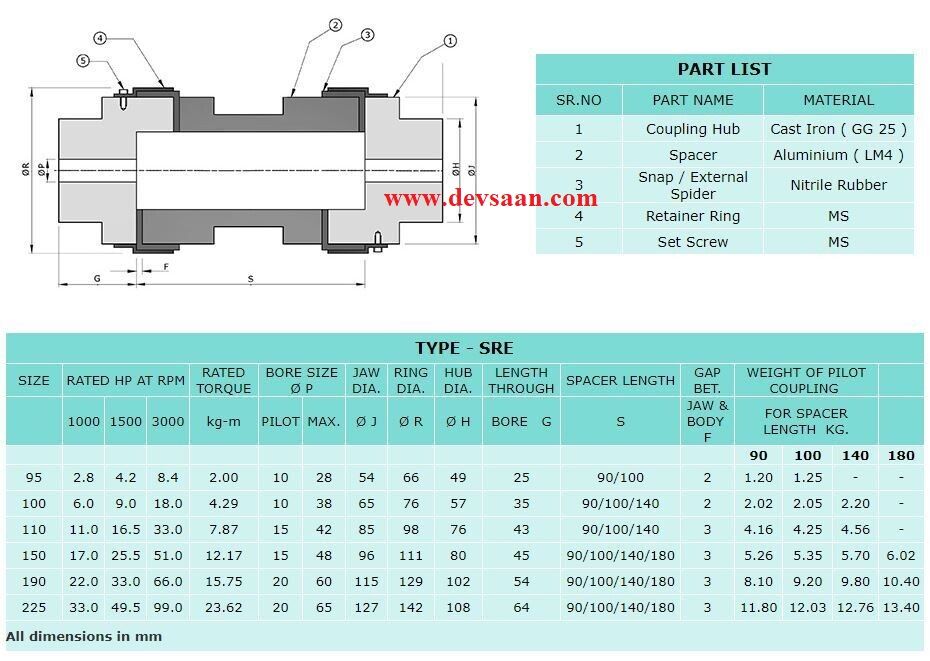

(Dimensi coupling dapat dilihat di brosur terlampir)

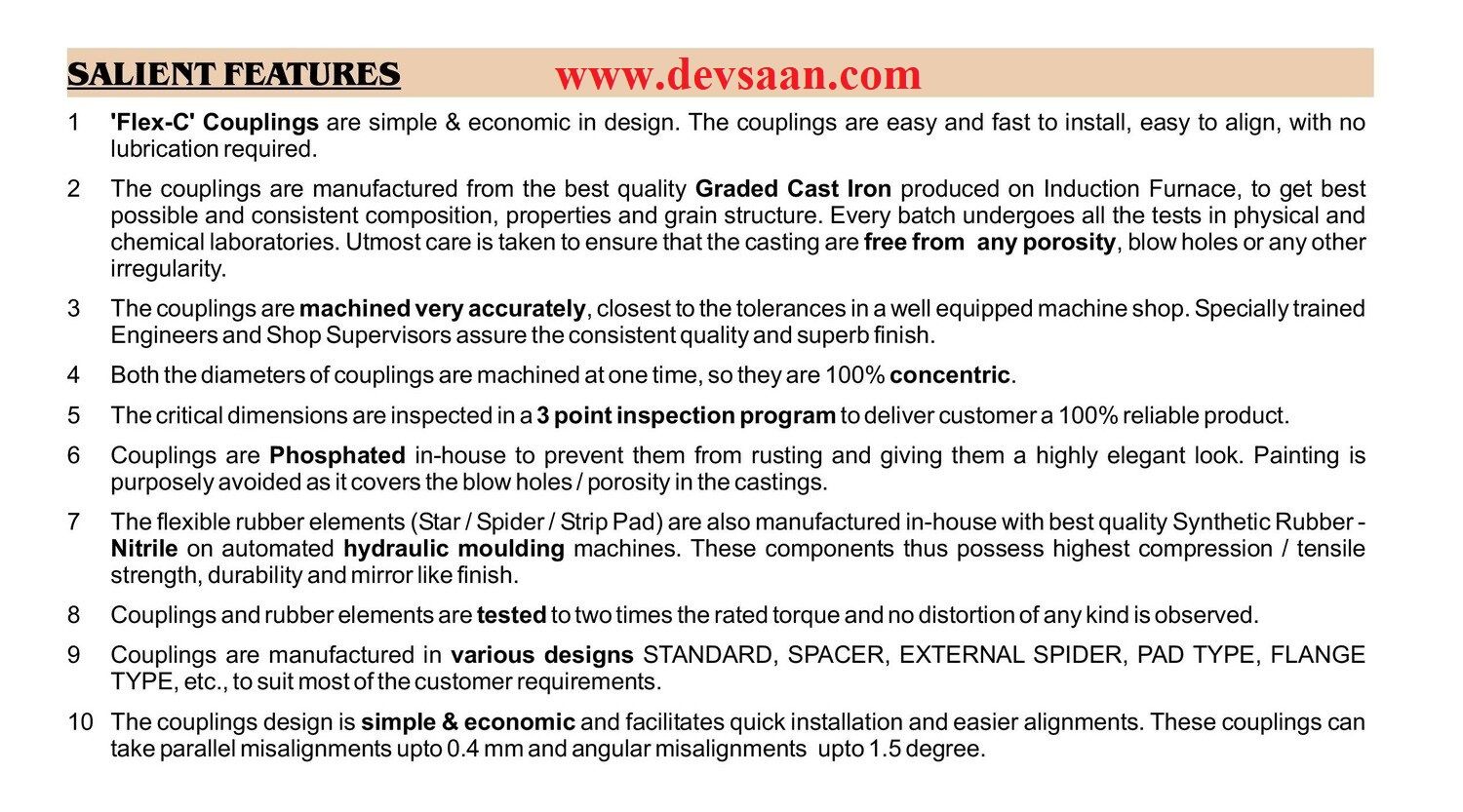

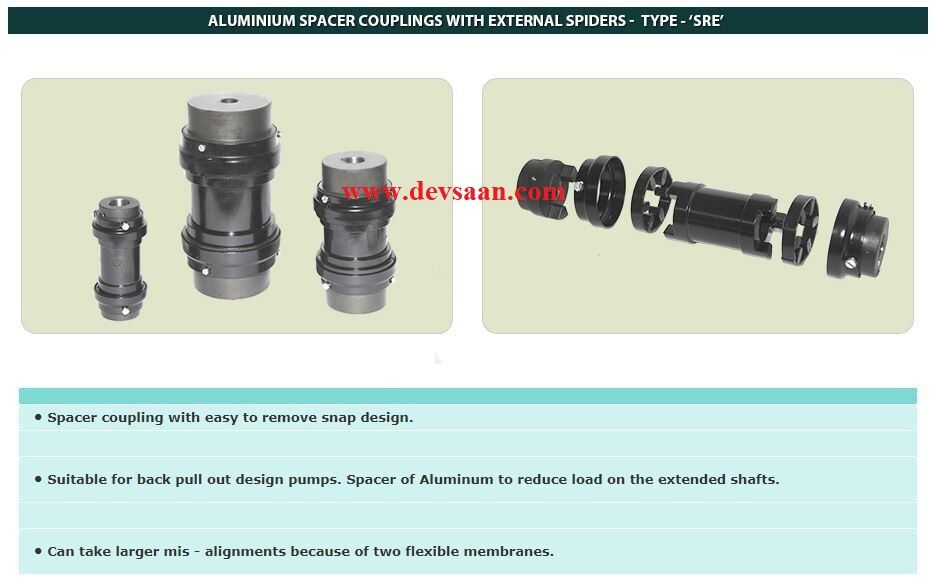

- External Spider / Snap Rubber element fits in the coupling from outside and can be replaced without disturbing the driver & driven unit.
- No downtime for replacement / inspection of rubber element.
- Suitable for back pull out design pumps. Spacer of Aluminum to reduce load on the extended shafts.
- Can take large misalignments because of two flexible membranes.
- Seamless retainer ring provided for proper location & stability of the rubber element.
- Torque range up to 24 kg-m (235.36 n-m)
Spesifikasi Aluminium Spacer Coupling SRE 100/140 :
| Model | 100/140 |
| Coupling type | Spacer |
| Colour | Black |
| Rated Hp (kW) : @ Speed 1000 Rpm @ Speed 1500 Rpm @ Speed 3000 Rpm |
6 (4,5 kW) 9 (6,75 kW) 18 (13,5 kW) |
| Rated Torque | 4,29 kg-m (42,07 n-m) |
| Pilot bore size | 10 mm |
| Max bore size | 38 mm |
| Jaw diameter | 65 mm |
| Ring diameter | 76 mm |
| Hub diameter | 57 mm |
| Total length | 210 mm |
| Length through bore | 35 mm |
| Gap between Jaw & Body | 2 mm |
Bahan konstruksi Aluminium Spacer Coupling SRE 100/140 :
| Coupling hub | Graded Cast Iron (GG 25) Phospated |
| Spacer | Aluminium (LM4) |
| External Spider / Snap Rubber element | Nitrile Rubber (NBR) |
| Retainer ring | MS |
| Set screw | MS |
Misalignment tolerance :
| Parallel misalignment up to 0.4 mm |
| Angular misalignment up to 1.5 degree |
Anda dapat beli produk tersebut langsung dari importir dan distributor tunggal di Indonesia :
PT. Devsaan Industech, LTC Glodok, Jakarta Barat, DKI Jakarta 11180
Anda juga akan suka
Dijual
Spacer Coupling SRE 100/100 Flex-C Max Bore 38 mm
Spacer Coupling SRE 100/100 Flex-C Max Bore 38 mm
Aluminium Spacer Coupling Panjang 170 mm
was Rp1.920.000
Menyimpan 4%
Rp1.840.000
Dijual

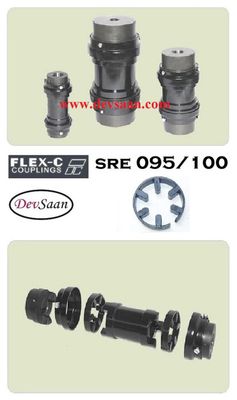

Spacer Coupling SRE 095/100 Flex-C Max Bore 28 mm
