Sanitary Centrifugal Pump SS-316 CFS-4A Pompa Sanitary (Complete Set) 2pole
Kode CPTPCFS4A15BT
Rp13.845.000
SS-316 Sanitary Bare Pump (Mechanical seal) - 40 mm x 40 mm c/w Elektro Motor 1,5hp/1,1kw/2pole/B3
Stok: 1 tersedia
1
Simpan produk ini untuk nanti
Bagikan produk ini dengan temanmu

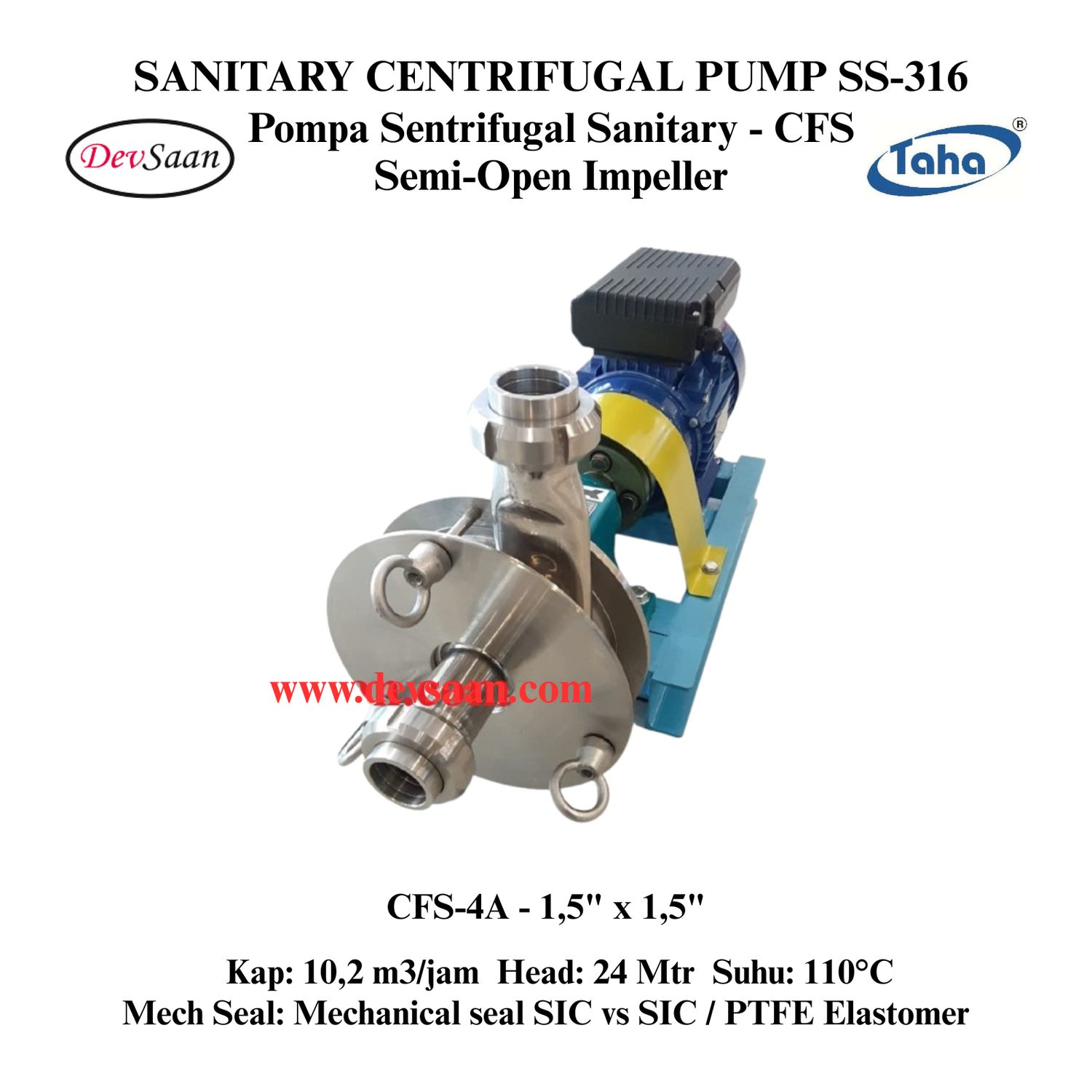

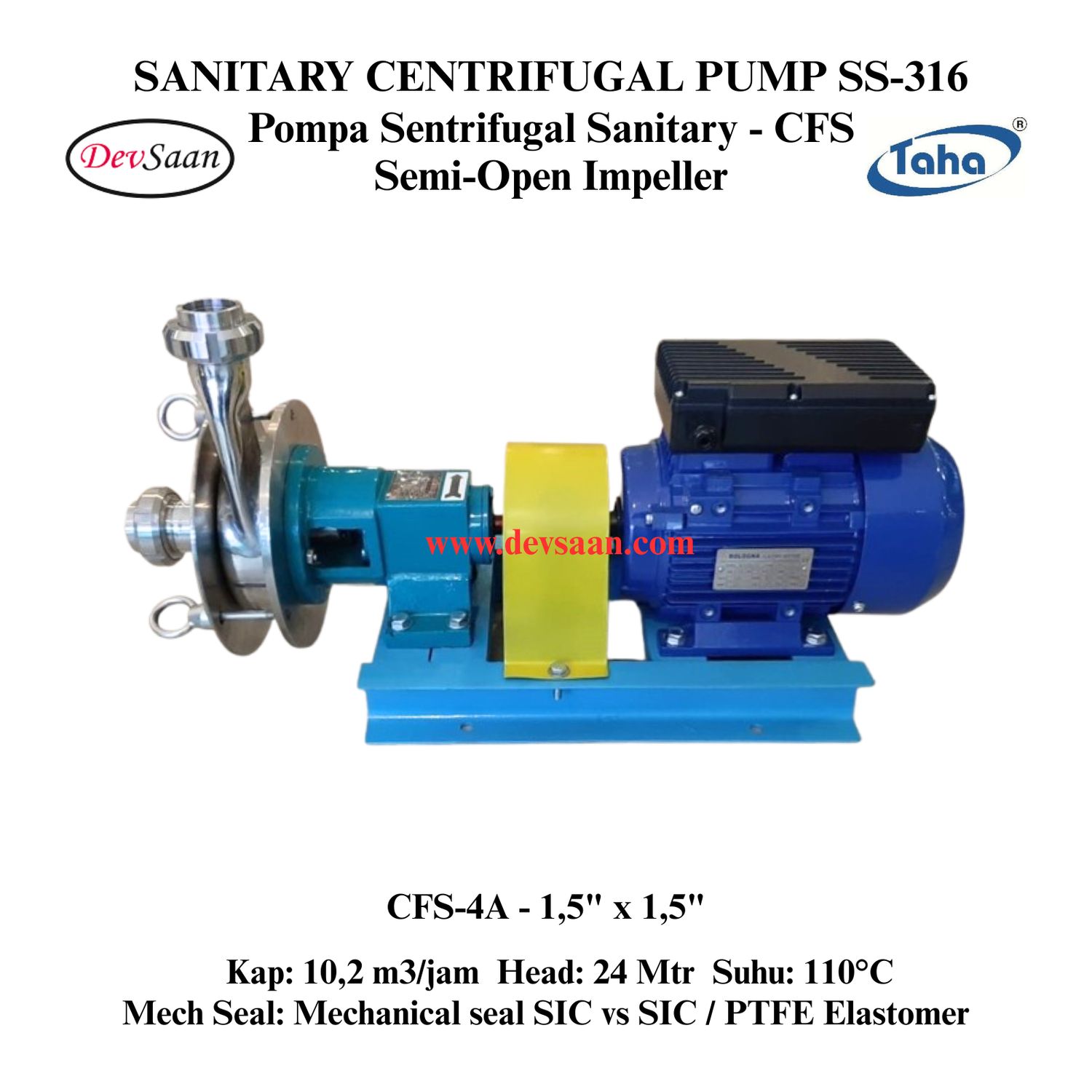

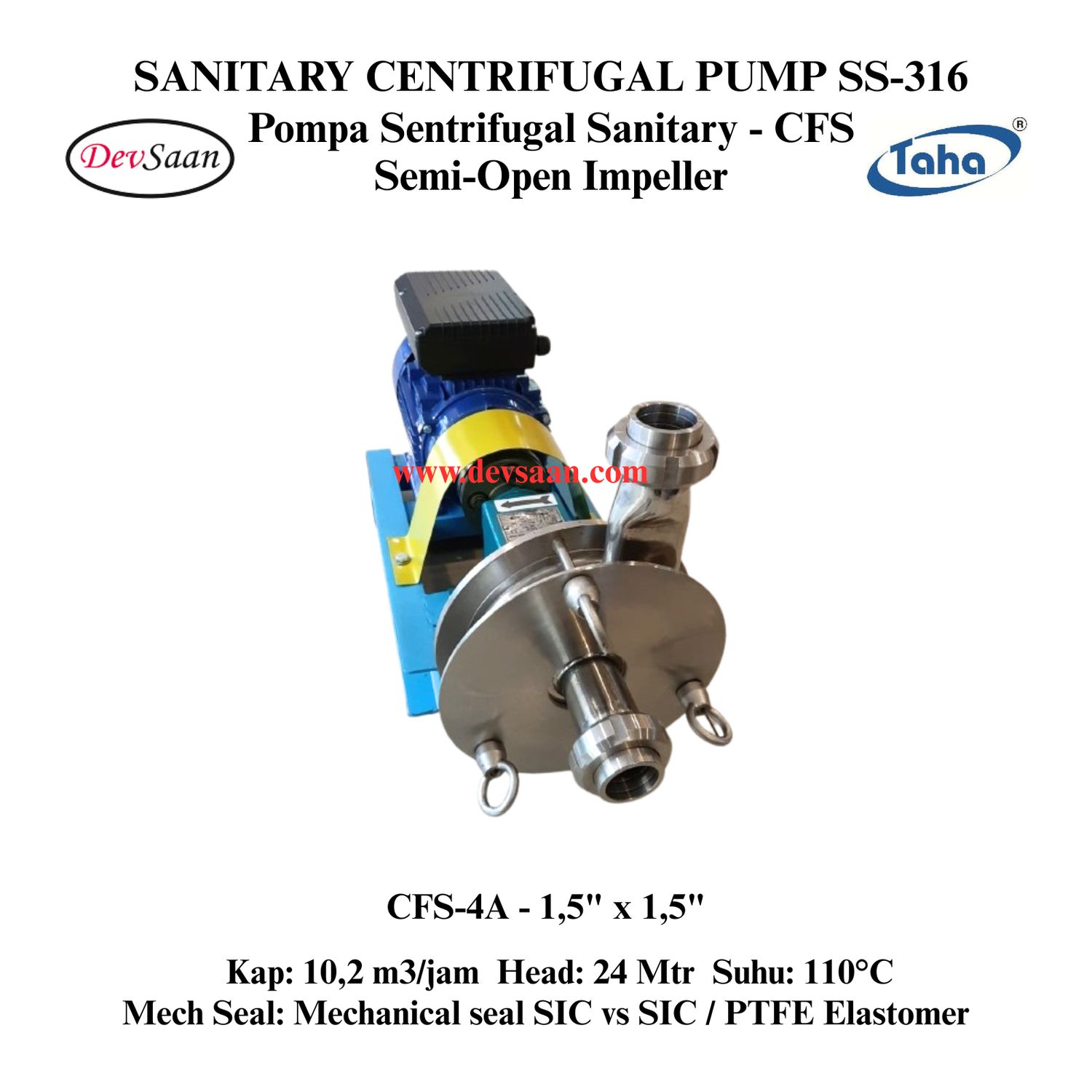

Sanitary Centrifugal Pump SS-316 CFS-4A Pompa Sanitary (Complete Set) 2pole
Rincian Produk
Model: CFS-4A (Complete Set) 2pole
Merek: Taha, India
Kondisi: Baru
Berat bersih: 41 Kg.
Berat: 42,00 kg
Jual Sanitary Centrifugal Pump SS-316 CFS-4A Pompa Sanitary c/w Elektro Motor 1,5hp/1,1kw/2pole/B3
- Terkopel dengan dinamo 1,5 Hp (1,1 kW) 2 Pole merek Motology (380V 3 Fase) / Bologna (220V 1 Fase) untuk maksimal Viskositas fluida 300 Cps.
- Perakitan 7hari kerja.
- Merek lain dinamo bisa di request.
Aplikasi pompa sanitary CFS : Produk makanan dan minuman seperti susu, sirup, gula cair, jelly, jus, industri persusuan, pabrik pengolah makanan, pabrik farmasi, pabrik obat, pabrik kosmetik, air RO, air DM, air panas dan lain-lain.

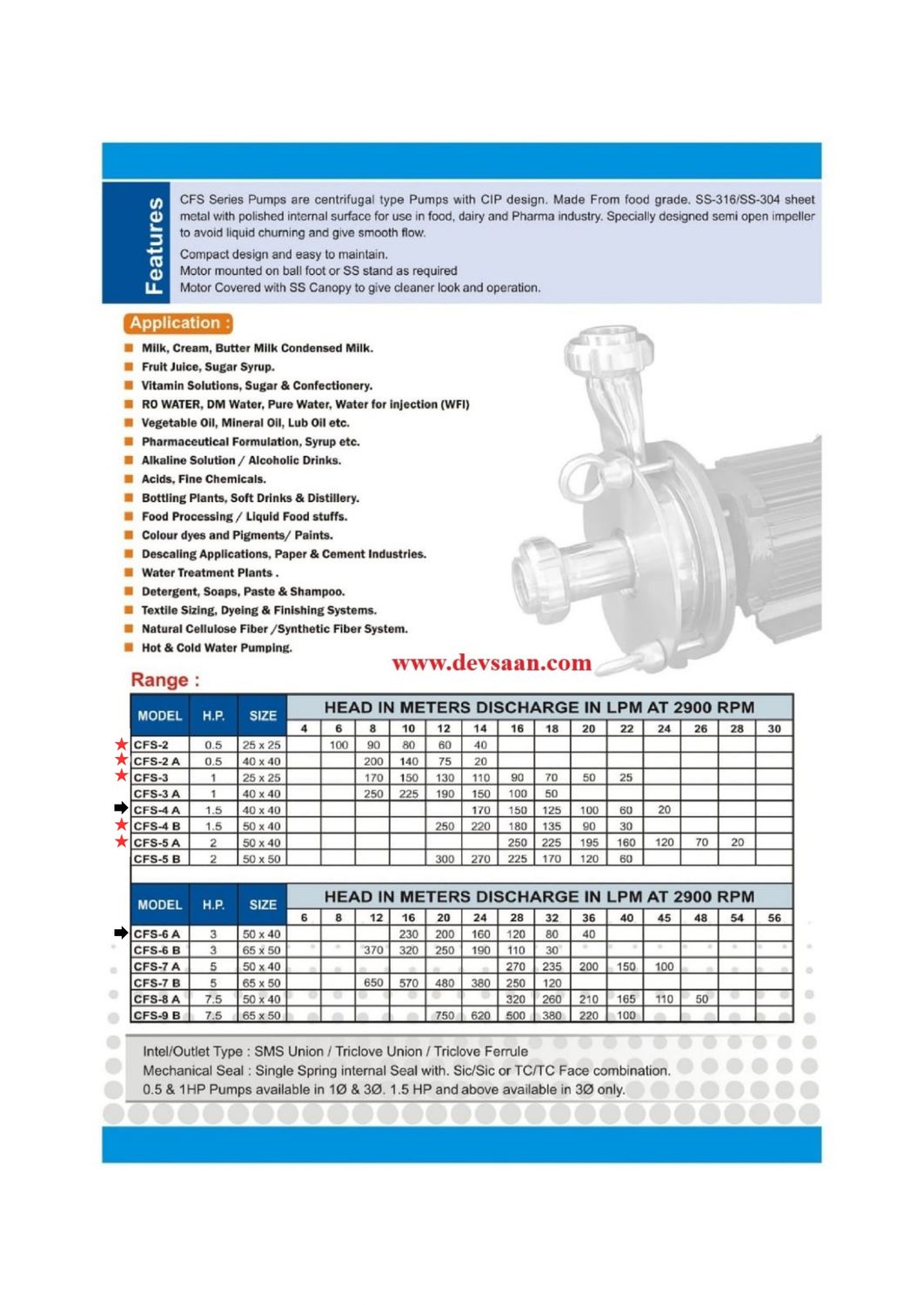

Spesifikasi pompa sanitary SS-316 CFS-4A :
| Ukuran | 40 mm x 40 mm |
| Inlet & Outlet | SMS Konektor |
| Kapasitas / Debit | 170 Lpm (10,2 m3/jam) |
| Head (Vertikal) |
Hingga 24 Mtr |
| Angkat hisap / Suction lift | Hingga 1 Mtr (Dengan Foot valve) |
| Berat jenis (Massa jenis) fluida | 1,2 (1200 Kg/m3) |
| Viskositas fluida | Hingga 300 Cps |
| Suhu fluida | Hingga 110° Celsius |
| pH fluida | 5~14 |
| Shaft seal | Mechanical seal SIC vs SIC / PTFE Elastomer |
| Kecepatan pompa | 2900 Rpm |
| Sistem perakitan | Horizontal direct inline coupling |
| Kebutuhan daya |
1,5 Hp (1,1 kW) |
| Tipe impeller | Semi-open |
| Casing design | Front open |
| Cleaning system | CIP (Clean-in-place) |
NOTE : Viskositas fluida di atas 100 Cps atau Berat jenis fluida di atas 1,2 ? Hubungi kami untuk konsultasi produk.
Bahan konstruksi pompa sanitary SS-316 CFS-4A :
| Casing | SS-316 |
| Impeller | SS-316 |
| Back plate | SS-316 |
| Shaft | SS-316 |
| Seal housing | SS-316 |
| Mechanical seal spring | SS-316 |
| Bearing bracket | Cast iron |
- Dibuat dari bahan AISI-316 agar tidak mengkontaminasi fluida.
- Khusus untuk aplikasi higienis / sanitary / food grade.
- Pompa sanitary CFS tidak dapat digunakan untuk fluida yang mudah terbakar.
Anda dapat beli produk tersebut langsung dari importir dan distributor tunggal di Indonesia :
PT. Devsaan Industech, LTC Glodok, Jakarta Barat, DKI Jakarta 11180
Anda juga akan suka
Centrifugal Pump SS-316 CNR-8A Pompa Sentrifugal (Complete Set) 2pole
Centrifugal Pump SS-316 CNR-8A Pompa Sentrifugal (Complete Set) 2pole
SS-316 Bare Pump (Mechanical seal) - 2" x 1,5" c/w Elektro Motor 7,5hp/5,5kw/2pole/B3
Rp35.580.000
Pre-order

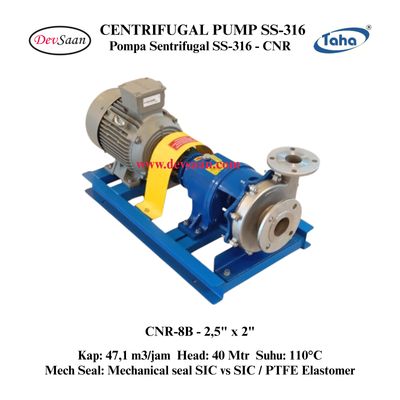

Centrifugal Pump SS-316 CNR-8B Pompa Sentrifugal Complete Set 2pole
