Name: Jaw Coupling SE 190 Flex-C Max Bore 60mm External Spider
Brand: Flex-C, India
SKU: JCSE190XXXXX
Price: 1840000.0 IDR
Availability: InStock

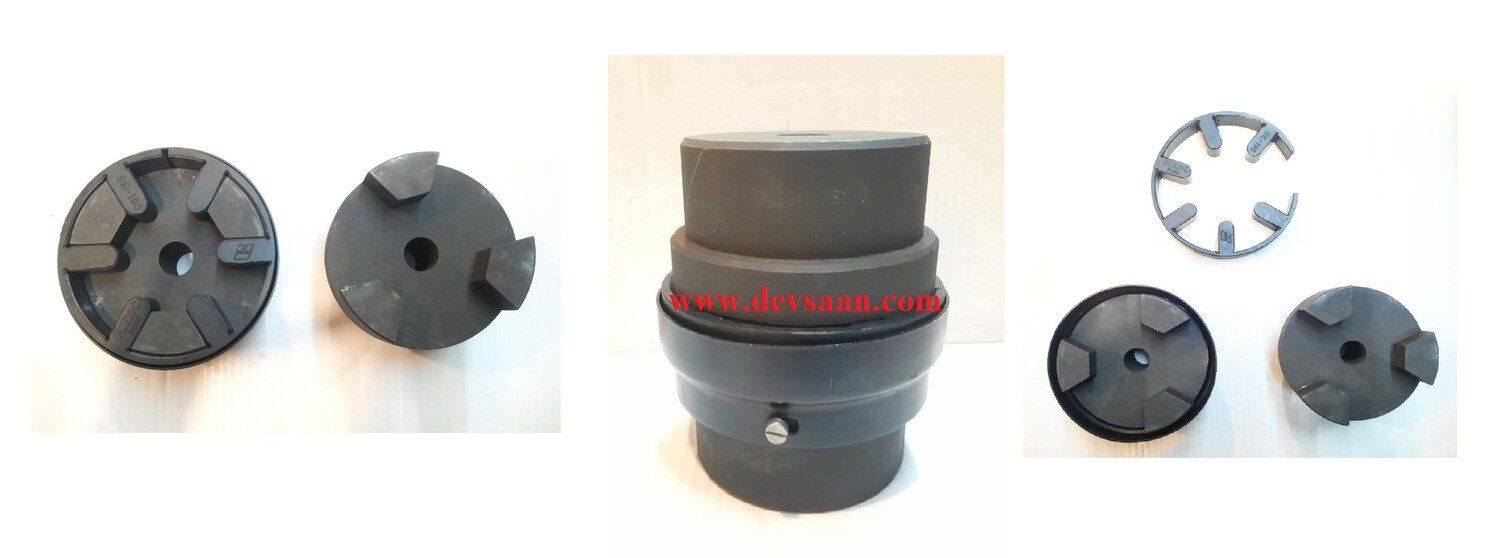

Jaw Coupling SE 190 Flex-C Max Bore 60 mm

Rincian Produk

Model: SE 190

Merek: Flex-C, India

Kondisi: Baru

Berat bersih: 7.7 Kg.

Berat: 9,00 kg

Jual Jaw Coupling SE 190 Flex-C Max Bore 60mm

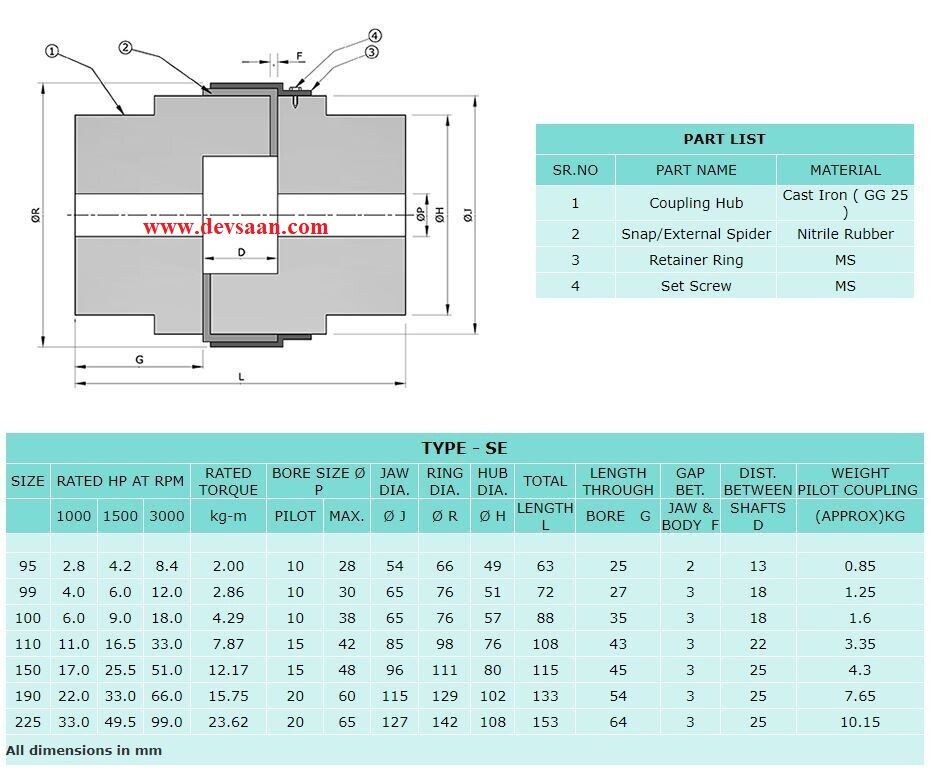

(Dimensi coupling dapat dilihat di brosur terlampir)

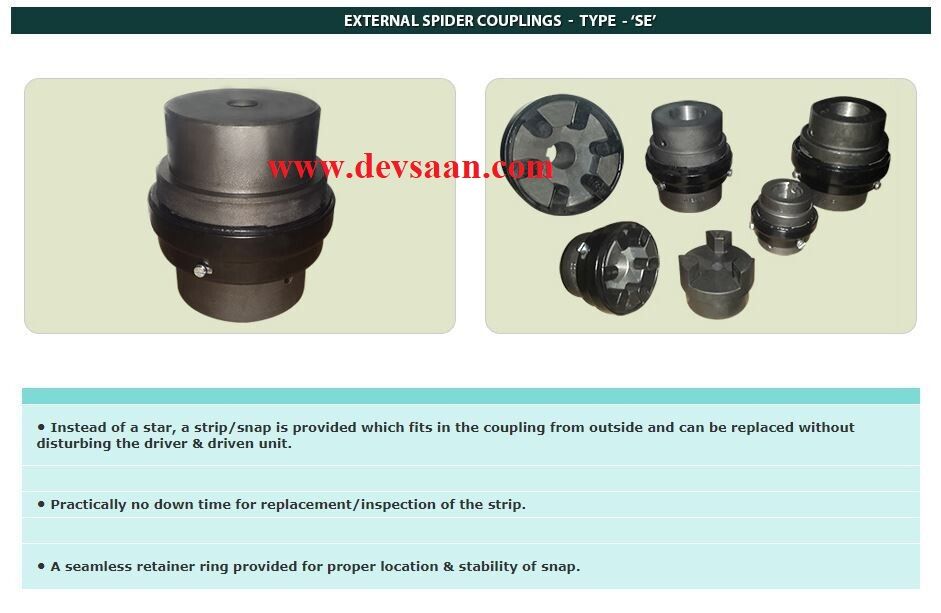

- External Spider / Snap Rubber element fits in the coupling from outside and can be replaced without disturbing the driver & driven unit.

- No downtime for replacement / inspection of rubber element.

- Seamless retainer ring provided for proper location & stability of the rubber element.

- Torque range up to 24 kg-m (235.36 n-m)

Spesifikasi Jaw Coupling SE 190 :

Model	190
Coupling type	Jaw Flex
Colour	Black
Rated Hp (kW) : @ Speed 1000 Rpm @ Speed 1500 Rpm @ Speed 3000 Rpm	22 (16,5 kW) 33 (24,75 kW) 66 (49,5 kW)
Rated Torque	15,75 kg-m (153,96 n-m)
Pilot bore size	20 mm
Max bore size	60 mm
Jaw diameter	115 mm
Ring diameter	129 mm
Hub diameter	102 mm
Total length	133 mm
Length through bore	54 mm
Gap between Jaw & Body	3 mm
Distance between shafts	25 mm

Bahan konstruksi Jaw Coupling SE 190 :

Coupling hub	Graded Cast Iron (GG 25) Phospated
External Spider / Snap Rubber element	Nitrile Rubber (NBR)
Retainer ring	MS
Set screw	MS

Misalignment tolerance :

Parallel misalignment up to 0.4 mm

Angular misalignment up to 1.5 degree

Anda dapat beli produk tersebut langsung dari importir dan distributor tunggal di Indonesia :

PT. Devsaan Industech, LTC Glodok, Jakarta Barat, DKI Jakarta 11180

Coupling & Rubber Element ready stock di perusahaan kami.

Harga sudah termasuk PPN & kami terbitkan Faktur pajak.

Harga sudah termasuk ongkir (*Sesuai harga barang & menggunakan JNE / J&T / Ekspedisi kargo)

Harga sudah termasuk packing.

Hubungi kami di (021) 62308030 / 62308035 atau WA 081388920119 dan 087782736393
