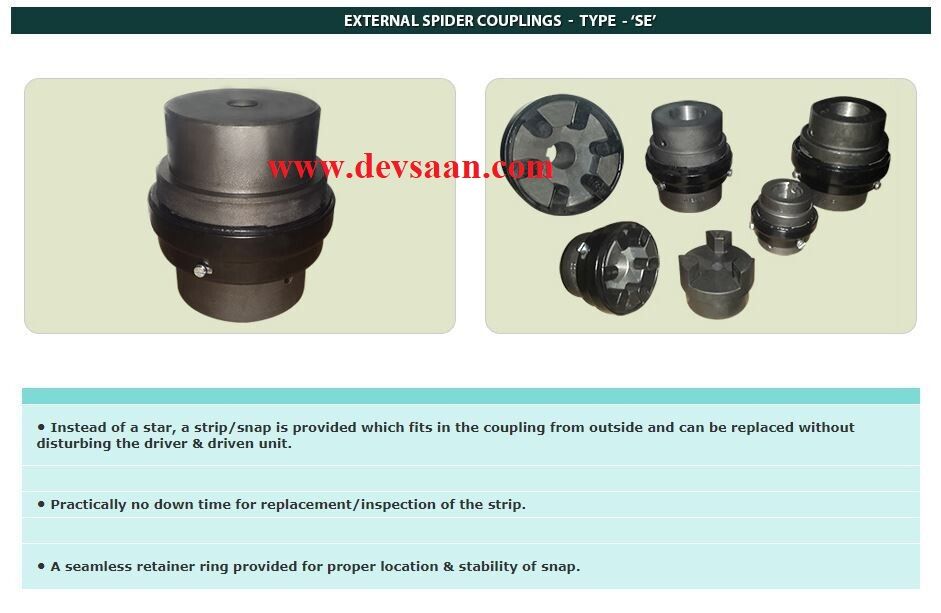

Jaw Coupling SE 095 Flex-C Max Bore 28 mm

Rincian Produk

Model: SE 095

Merek: Flex-C, India

Kondisi: Baru

Berat bersih: 850 Gr

Berat: 1,00 kg

Jual Jaw Coupling SE 095 Flex-C Max Bore 28mm

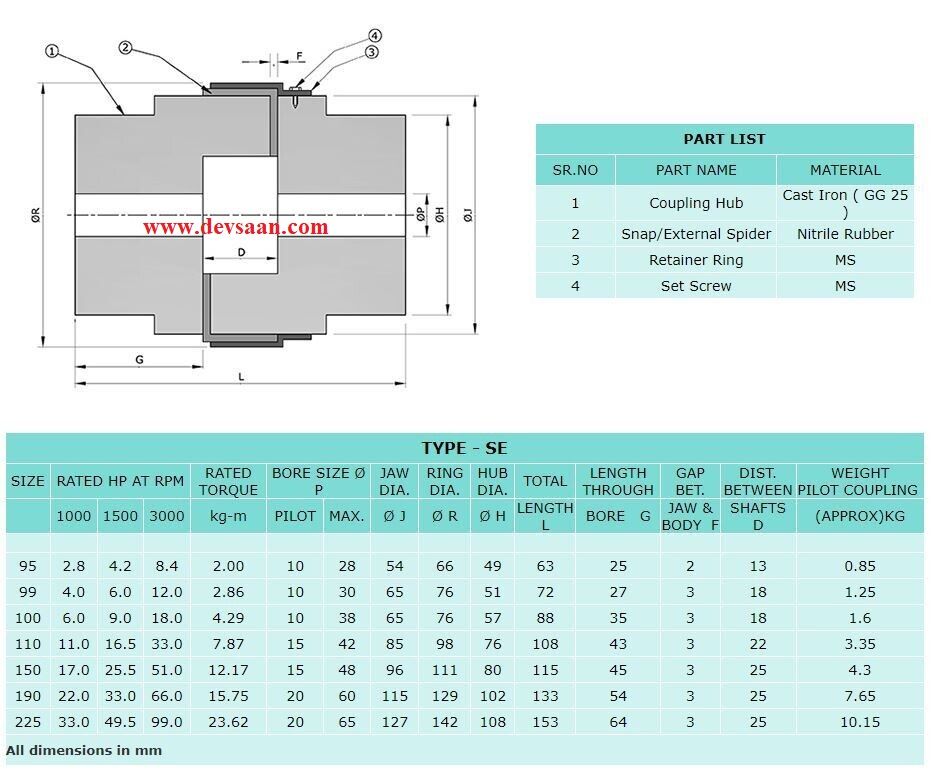

(Dimensi coupling dapat dilihat di brosur terlampir)

- External Spider / Snap Rubber element fits in the coupling from outside and can be replaced without disturbing the driver & driven unit.

- No downtime for replacement / inspection of rubber element.

- Seamless retainer ring provided for proper location & stability of the rubber element.

- Torque range up to 24 kg-m (235.36 n-m)

Spesifikasi Jaw Coupling SE 095 :

Model	095
Coupling type	Jaw Flex
Colour	Black
Rated Hp (kW) : @ Speed 1000 Rpm @ Speed 1500 Rpm @ Speed 3000 Rpm	2,8 (2,1 kW) 4,2 (3,15 kW) 8,4 (6,3 kW)
Rated Torque	2 kg-m (19,61 n-m)
Pilot bore size	10 mm
Max bore size	28 mm
Jaw diameter	54 mm
Ring diameter	66 mm
Hub diameter	49 mm
Total length	63 mm
Length through bore	25 mm
Gap between Jaw & Body	2 mm
Distance between shafts	13 mm

Bahan konstruksi Jaw Coupling SE 095 :

Coupling hub	Graded Cast Iron (GG 25) Phospated
External Spider / Snap Rubber element	Nitrile Rubber (NBR)
Retainer ring	MS
Set screw	MS

Misalignment tolerance :

Parallel misalignment up to 0.4 mm

Angular misalignment up to 1.5 degree

Anda dapat beli produk tersebut langsung dari importir dan distributor tunggal di Indonesia :

PT. Devsaan Industech, LTC Glodok, Jakarta Barat, DKI Jakarta 11180

Coupling & Rubber Element ready stock di perusahaan kami.

Harga sudah termasuk PPN & kami terbitkan Faktur pajak.

Harga sudah termasuk ongkir (*Sesuai harga barang & menggunakan JNE / J&T / Ekspedisi kargo)

Harga sudah termasuk packing.
