Cushion Pad Coupling K 280 Flex-C Max Bore 80 mm
Kode JCK280XXXXXX
Rp5.750.000
Dijual
was Rp6.000.000 Menyimpan 4%
High Torque Coupling Panjang 200 mm
Stok: 2 tersedia
1
Simpan produk ini untuk nanti
Bagikan produk ini dengan temanmu
Cushion Pad Coupling K 280 Flex-C Max Bore 80 mm
Rincian Produk
Model: K 280
Merek: Flex-C, India
Kondisi: Baru
Berat bersih: 25 Kg.
Berat: 30,00 kg
Jual Cushion Pad Coupling K 280 Flex-C Max Bore 80mm

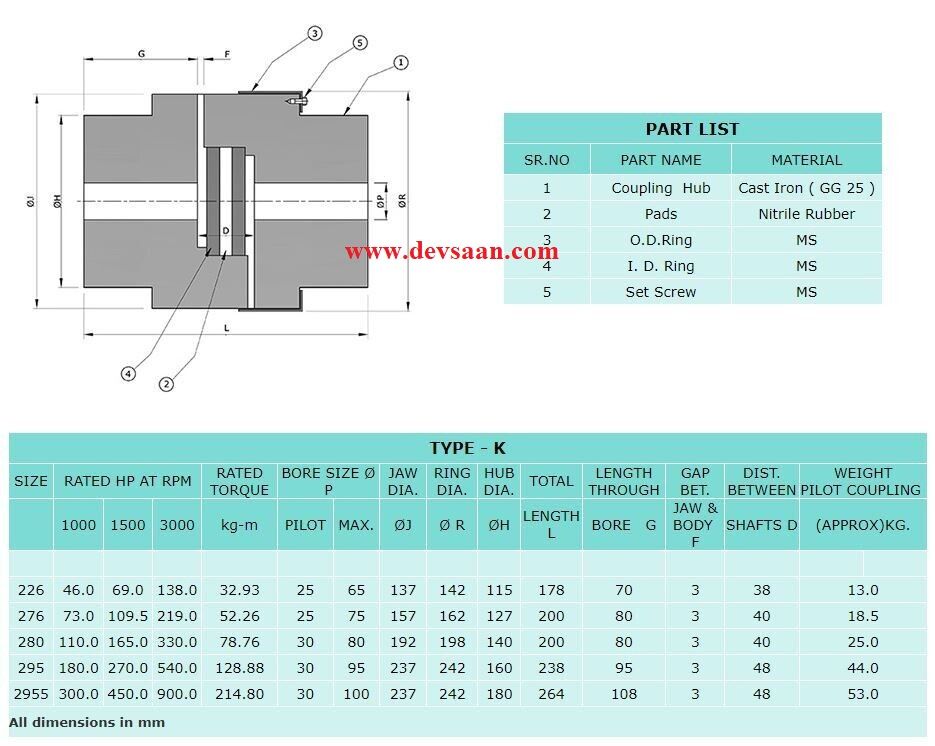

(Dimensi coupling dapat dilihat di brosur terlampir)

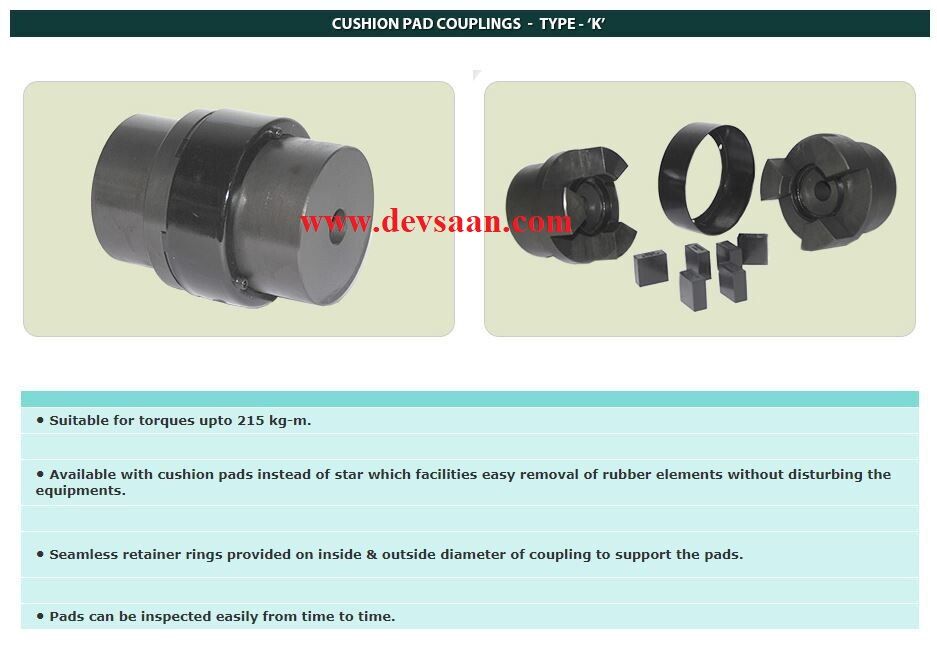

- Cushion Pad Coupling available with cushion pads instead of star / spider rubber, which facilitates easy removal of rubber elements without disturbing the equipment.
- Seamless retainer rings provided on inside and outside diameter of coupling to support the pads.
- Pads can be inspected easily from time to time.
- Torque range up to 214 kg-m (2098.62 n-m)
Spesifikasi Cushion Pad Coupling K 280 :
| Model | 280 |
| Coupling type | Cushion Pad |
| Colour | Black |
| Rated Hp (kW) : @ Speed 1000 Rpm @ Speed 1500 Rpm @ Speed 3000 Rpm |
110 (82,5 kW) 165 (123,75 kW) 330 (247,5 kW) |
| Rated Torque | 78,76 kg-m (772,37 n-m) |
| Pilot bore size | 30 mm |
| Max bore size | 80 mm |
| Jaw diameter | 192 mm |
| Ring diameter | 198 mm |
| Hub diameter | 140 mm |
| Total length | 200 mm |
| Length through bore | 80 mm |
| Gap between Jaw & Body | 3 mm |
| Distance between shafts | 40 mm |
Bahan konstruksi Cushion Pad Coupling K 280 :
| Coupling hub | Graded Cast Iron (GG 25) |
| Cushion Pads | Nitrile Rubber (NBR) |
| O.D.Ring | M.S. |
| I.D.Ring | M.S. |
| Set Screw | M.S. |
Misalignment tolerance :
| Parallel misalignment up to 0.4 mm |
| Angular misalignment up to 1.5 degree |
Anda dapat beli produk tersebut langsung dari importir dan distributor tunggal di Indonesia :
PT. Devsaan Industech, LTC Glodok, Jakarta Barat, DKI Jakarta 11180
