Cushion Pad Coupling K 276 Flex-C Max Bore 75 mm
Kode JCK276XXXXXX
Rp4.025.000
Dijual
was Rp4.200.000 Menyimpan 4%
High Torque Coupling Panjang 200 mm
Stok: 2 tersedia
1
Simpan produk ini untuk nanti
Bagikan produk ini dengan temanmu
Cushion Pad Coupling K 276 Flex-C Max Bore 75 mm
Rincian Produk
Model: K 276
Merek: Flex-C, India
Kondisi: Baru
Berat bersih: 19 Kg.
Berat: 23,00 kg
Jual Cushion Pad Coupling K 276 Flex-C Max Bore 75mm

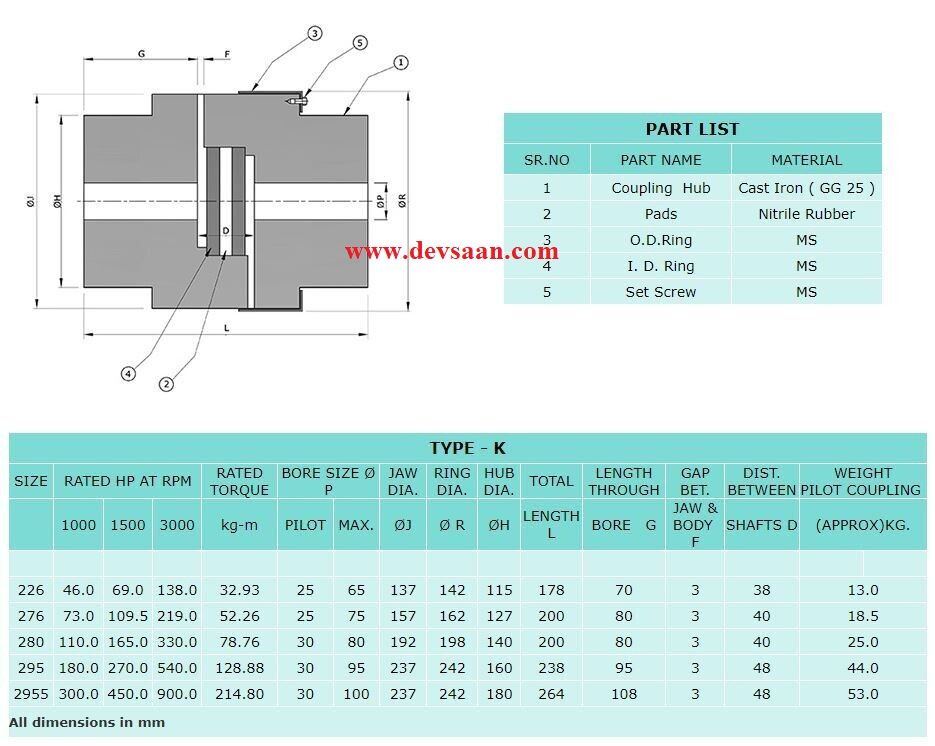

(Dimensi coupling dapat dilihat di brosur terlampir)

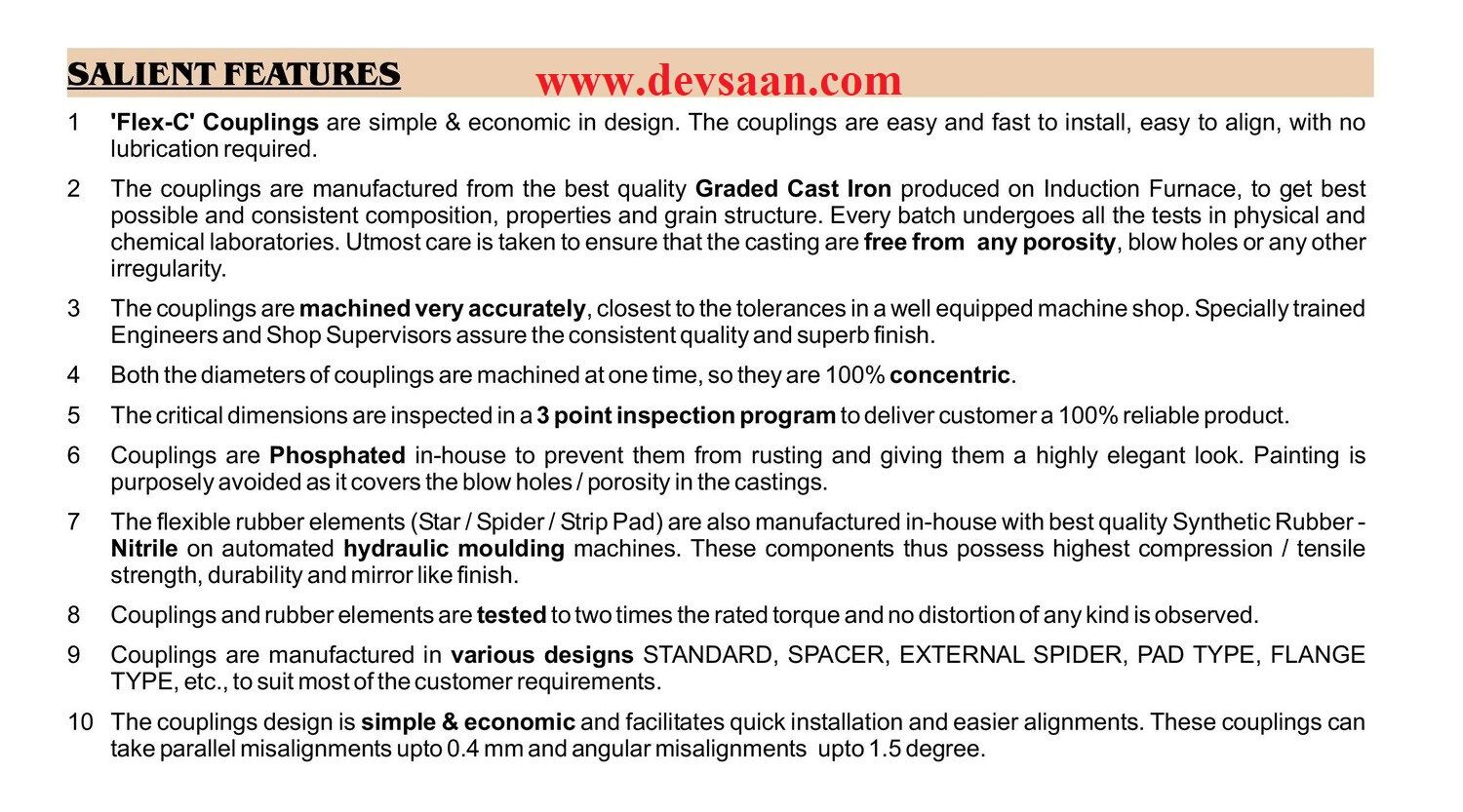

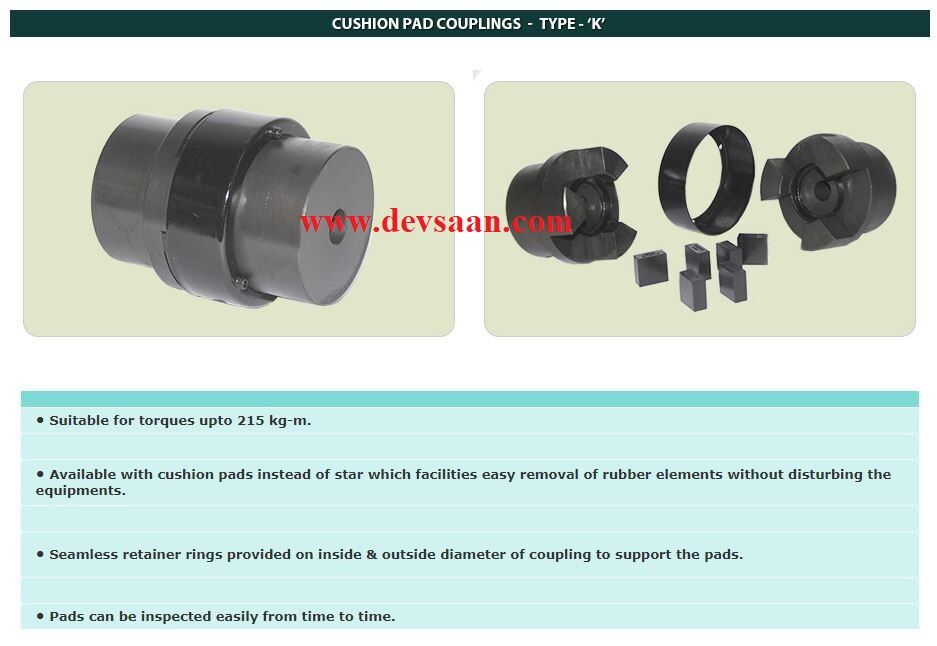

- Cushion Pad Coupling available with cushion pads instead of star / spider rubber, which facilitates easy removal of rubber elements without disturbing the equipment.
- Seamless retainer rings provided on inside and outside diameter of coupling to support the pads.
- Pads can be inspected easily from time to time.
- Torque range up to 214 kg-m (2098.62 n-m)
Spesifikasi Cushion Pad Coupling K 276 :
| Model | 276 |
| Coupling type | Cushion Pad |
| Colour | Black |
| Rated Hp (kW) : @ Speed 1000 Rpm @ Speed 1500 Rpm @ Speed 3000 Rpm |
73 (54,75 kW) 109,5 (82,125 kW) 219 (164,25 kW) |
| Rated Torque | 52,26 kg-m (512,5 n-m) |
| Pilot bore size | 25 mm |
| Max bore size | 75 mm |
| Jaw diameter | 157 mm |
| Ring diameter | 162 mm |
| Hub diameter | 127 mm |
| Total length | 200 mm |
| Length through bore | 80 mm |
| Gap between Jaw & Body | 3 mm |
| Distance between shafts | 40 mm |
Bahan konstruksi Cushion Pad Coupling K 276 :
| Coupling hub | Graded Cast Iron (GG 25) |
| Cushion Pads | Nitrile Rubber (NBR) |
| O.D.Ring | M.S. |
| I.D.Ring | M.S. |
| Set Screw | M.S. |
Misalignment tolerance :
| Parallel misalignment up to 0.4 mm |
| Angular misalignment up to 1.5 degree |
Anda dapat beli produk tersebut langsung dari importir dan distributor tunggal di Indonesia :
PT. Devsaan Industech, LTC Glodok, Jakarta Barat, DKI Jakarta 11180
| Coupling & Rubber Element ready stock di perusahaan kami. |
| Harga sudah termasuk PPN & kami terbitkan Faktur pajak. |
| Harga sudah termasuk ongkir (*Sesuai harga barang & menggunakan JNE / J&T / Ekspedisi kargo) |
| Harga sudah termasuk packing. |
| Hubungi kami di (021) 62308030 / 62308035 atau WA 081388920119 dan 087782736393 |
