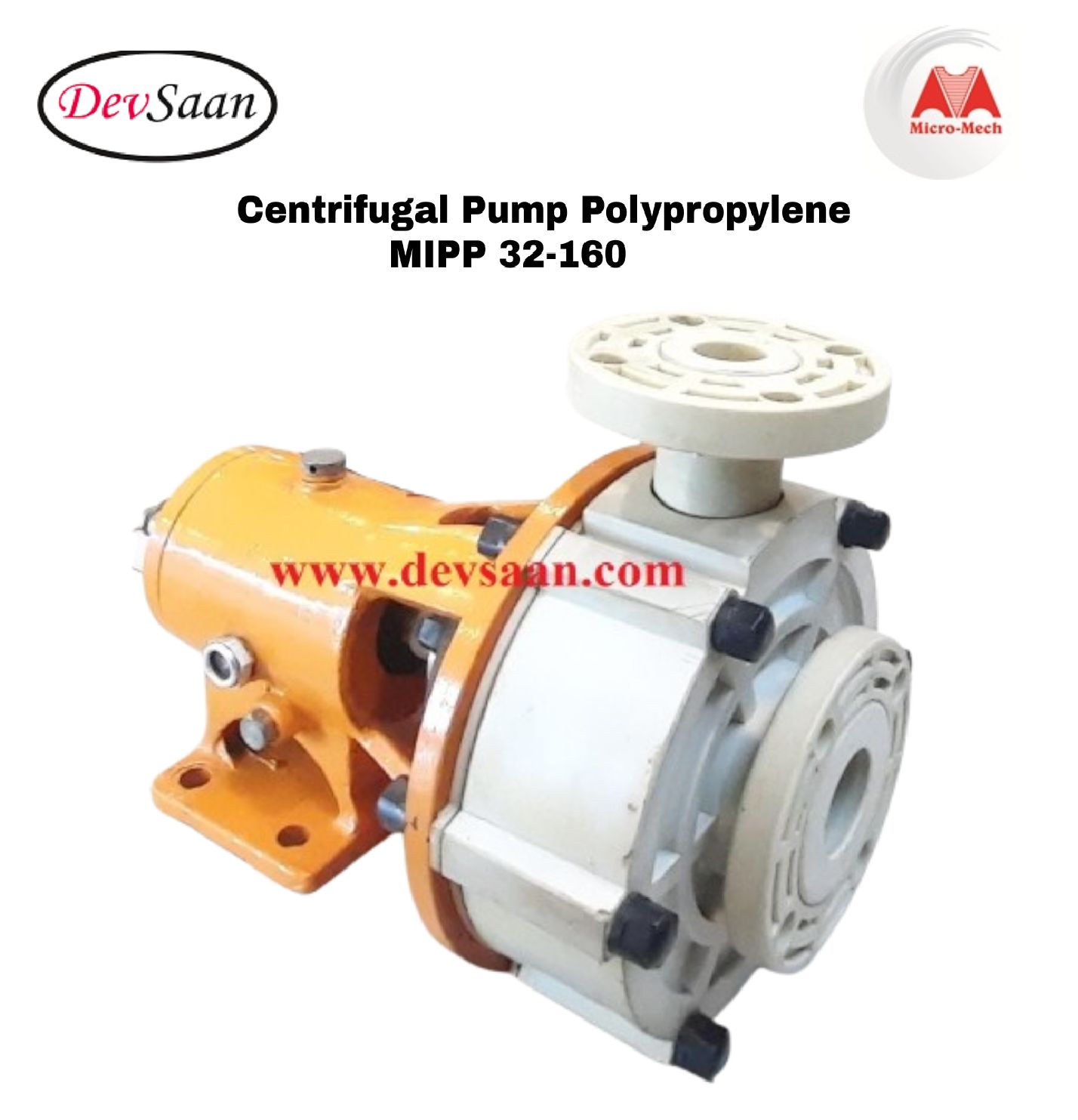

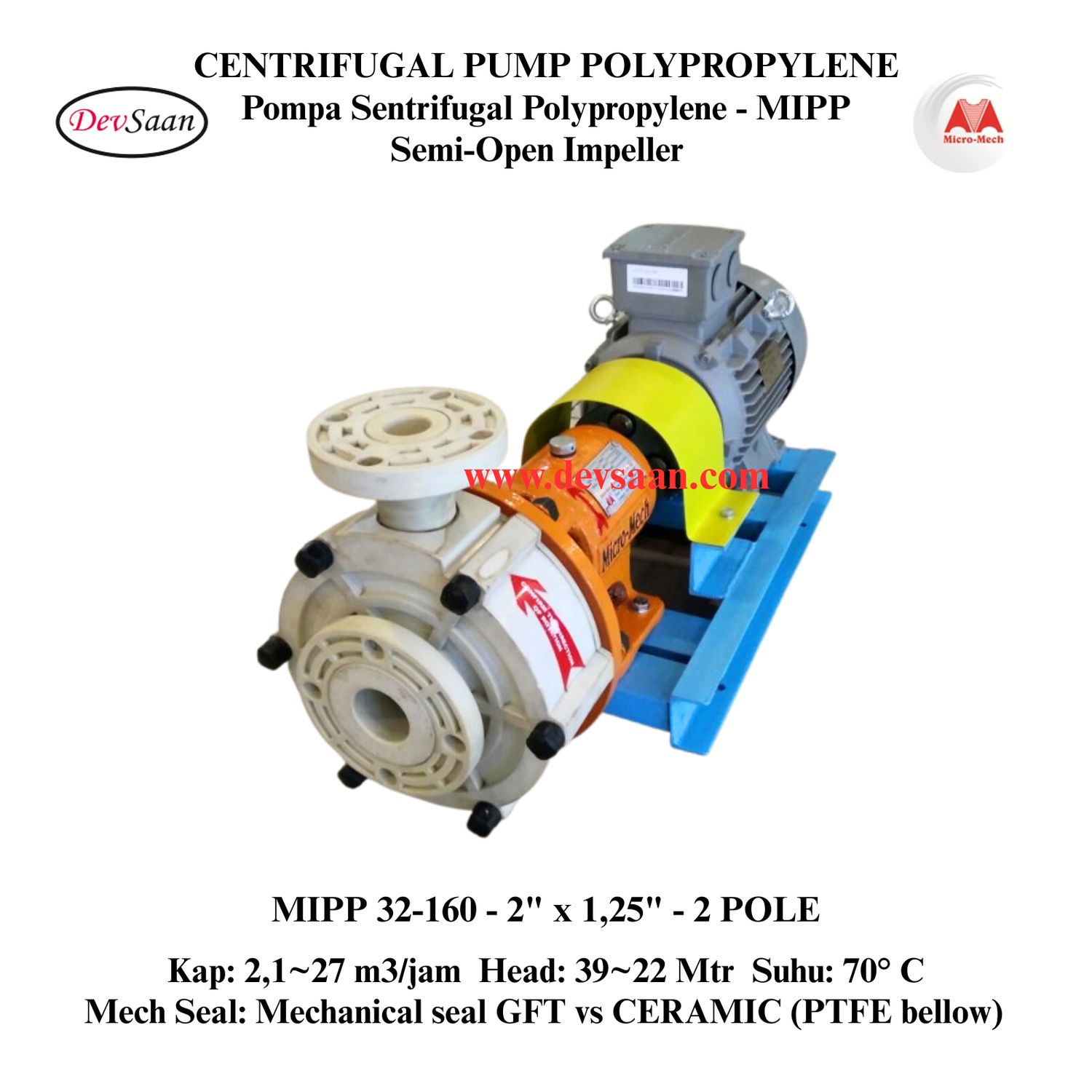

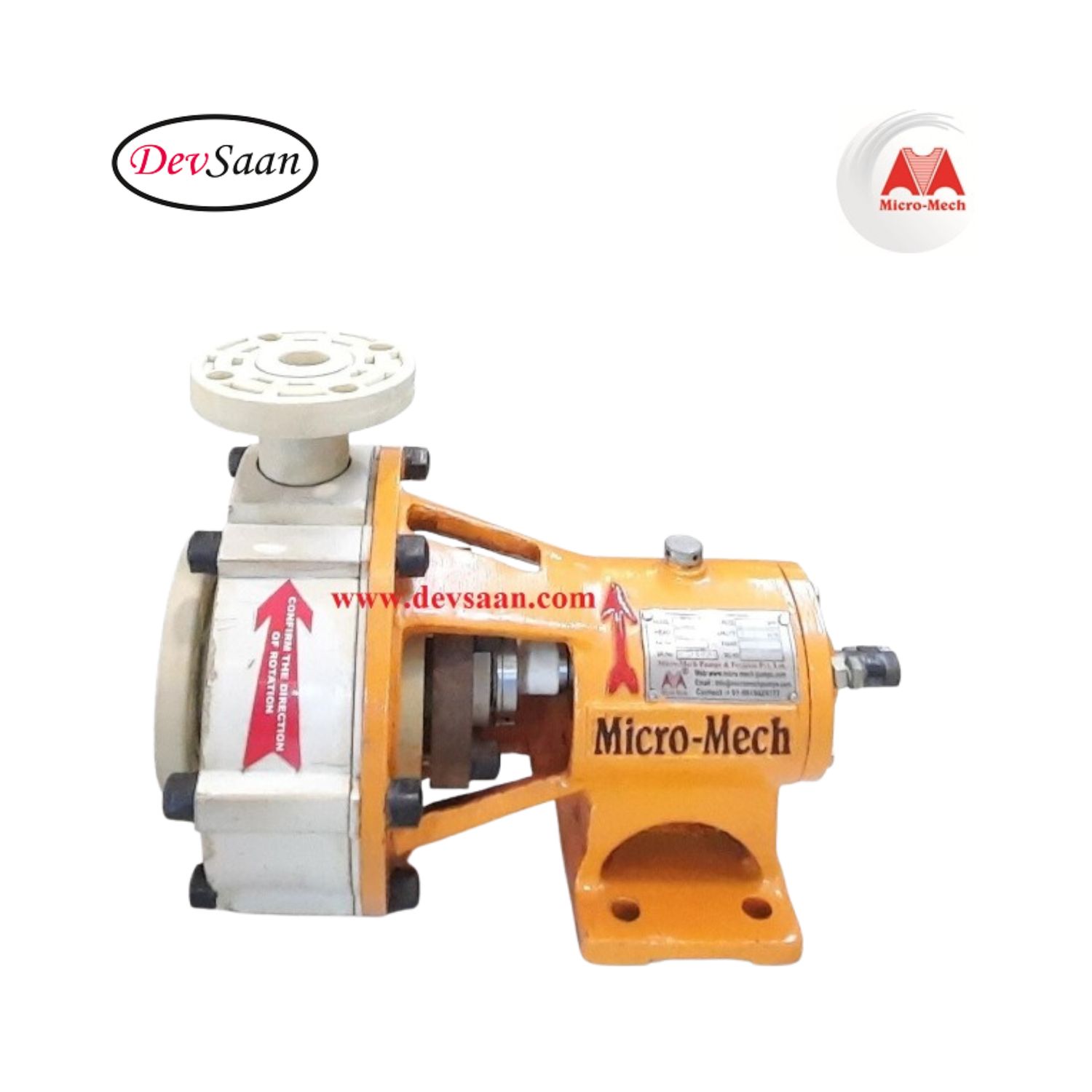

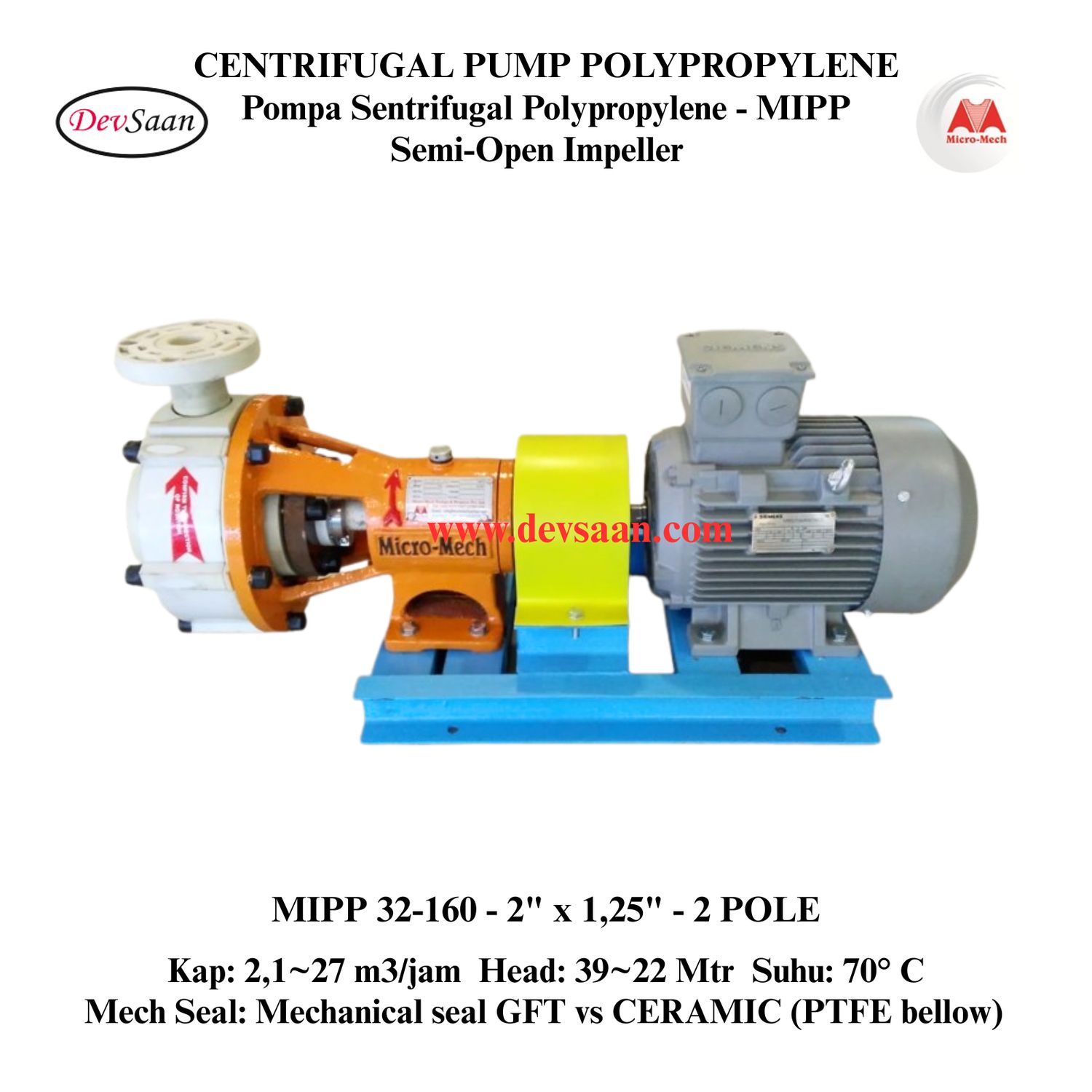

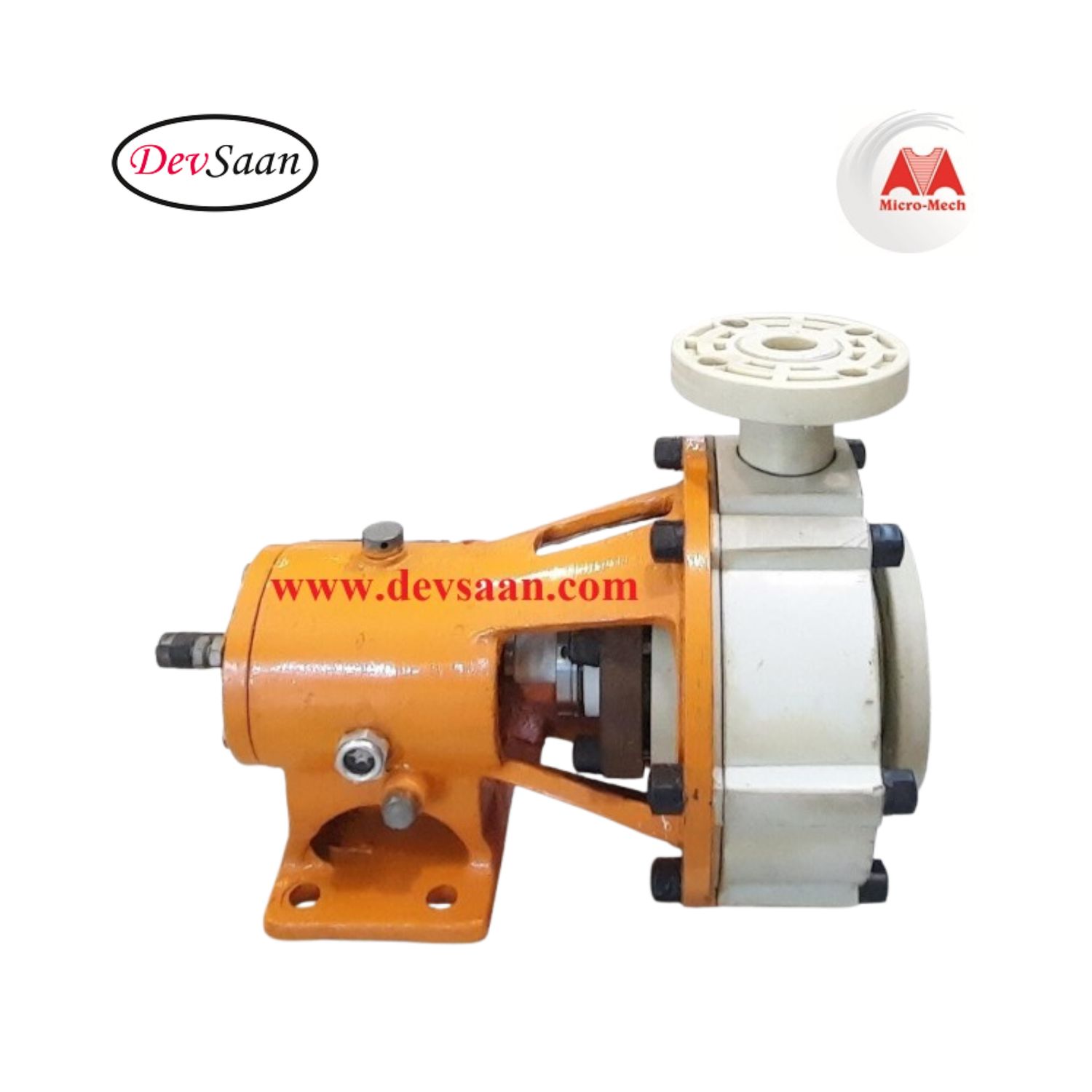

Centrifugal Pump Polypropylene MIPP 32-160 Pompa Sentrifugal (Complete Set) 2pole
Kode CPMIPP32160XT
Rp17.310.000
Polypropylene (Mechanical seal) - 2" x 1,25" - 2900 Rpm c/w Elektro Motor 5,5hp/4kw/2pole/B3
Stok: 3 tersedia
1
Simpan produk ini untuk nanti
Bagikan produk ini dengan temanmu
Centrifugal Pump Polypropylene MIPP 32-160 Pompa Sentrifugal (Complete Set) 2pole
Rincian Produk
Model: MIPP 32-160 Complete Set 2pole
Merek: Micro-Mech, India
Kondisi: Baru
Berat bersih: 60 Kg.
Berat: 60,00 kg
Jual Centrifugal Pump Polypropylene MIPP 32-160 Pompa Sentrifugal c/w Elektro Motor 5,5hp/4kw/2pole/B3
- Terkopel dengan dinamo 5,5 Hp (4 kW) 2 Pole merek Motology (380V 3 Fase) / Bologna (220V 1 Fase) untuk maksimal Viskositas fluida 300 Cps.
- Perakitan 7hari kerja.
- Merek lain dinamo bisa di request.

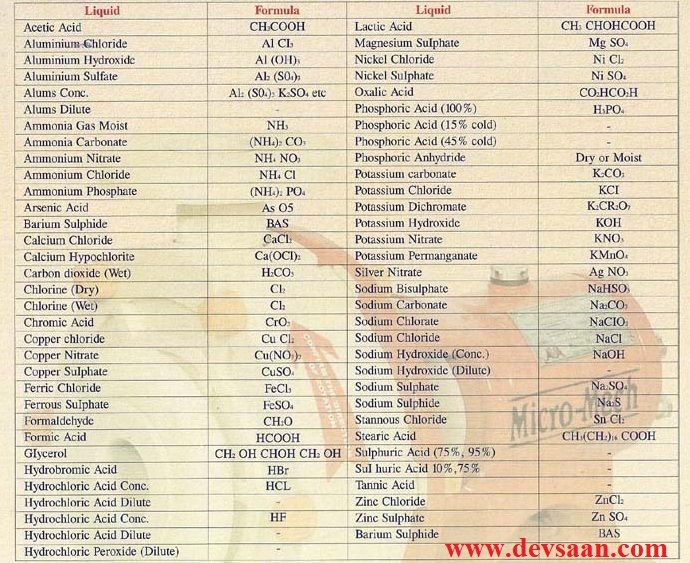

Aplikasi pompa sentrifugal MIPP : Kimia & asam pekat, limbah, pewarna, pigment, filter press, pelapisan, air RO, air DM, air laut dan lain-lain.
Spesifikasi pompa sentrifugal Polypropylene MIPP 32-160 :
| Ukuran | 2" (50 mm) x 1,25" (32 mm) |
| Inlet & Outlet | Drat BSPT + Flange ANSI#150 |

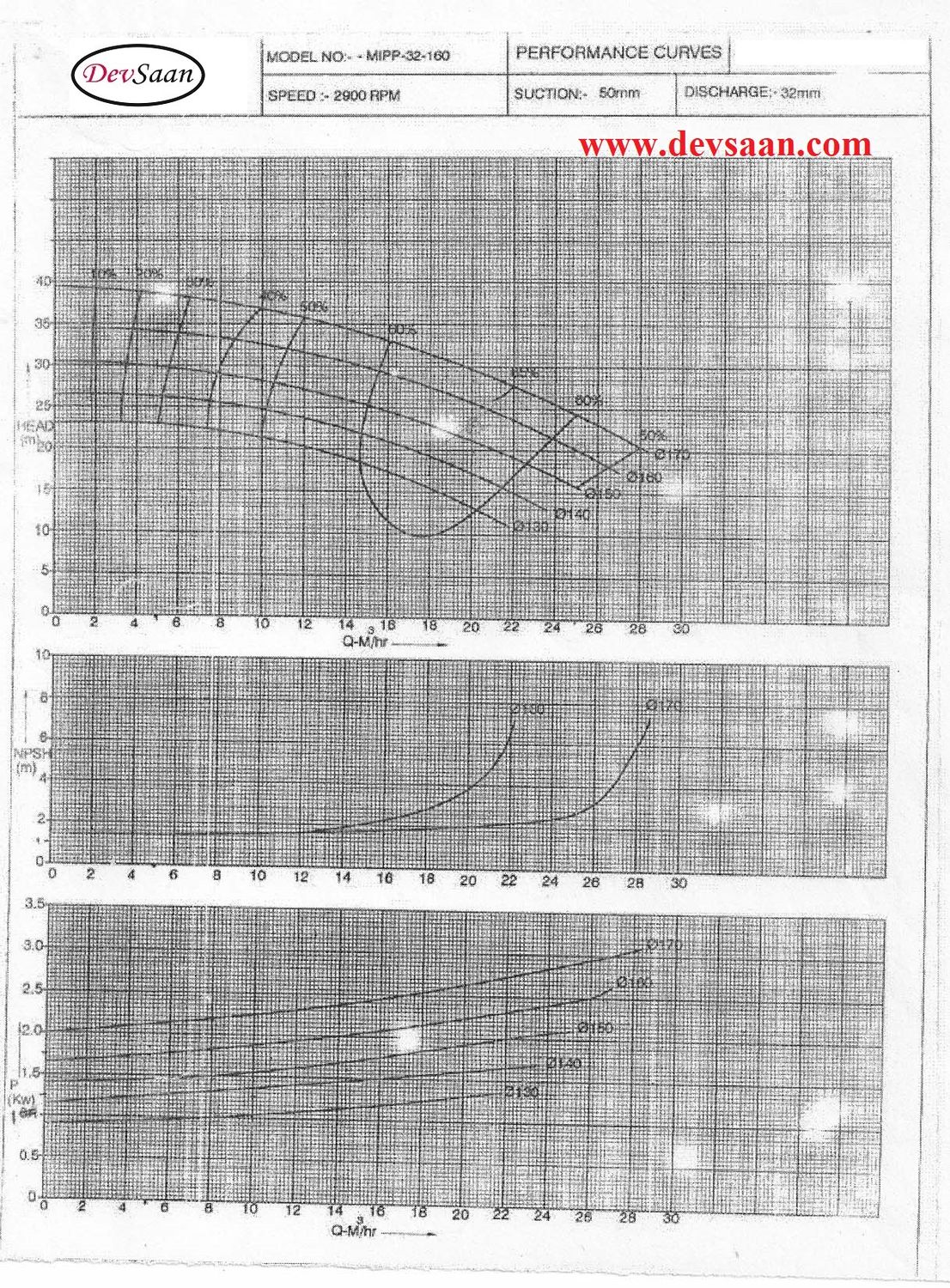

| Kapasitas / Debit (2900 Rpm) Head (Vertikal) (2900 Rpm) |
35~450 Lpm (2,1~27 m3/jam) 39~22 Mtr |
| Angkat hisap / Suction lift | Hingga 1 Mtr (Dengan Foot valve) |
| Berat jenis (Massa jenis) fluida | Hingga 1,5 (1500 Kg/m3) |
| Viskositas fluida | Hingga 300 Cps |
| Suhu fluida | Hingga 70° Celsius |
| pH fluida | 4~8 |
| Shaft seal | Mechanical seal GFT vs CERAMIC (PTFE bellow) |
| Kecepatan pompa | 2900 Rpm |
| Sistem perakitan | Horizontal direct inline coupling |
| Kebutuhan daya | 5,5 Hp (4 kW) @ 2900 Rpm |
| Tipe impeller | Semi-open |
NOTE : Viskositas fluida di atas 100 Cps atau Berat jenis fluida di atas 1,0 ? Hubungi kami untuk konsultasi produk.
Bahan konstruksi pompa sentrifugal Polypropylene MIPP 32-160 :
| Casing | Polypropylene Co-Polymer (Full moulded construction) |
| Impeller | Polypropylene Co-Polymer (Full moulded construction) |
| Back plate | Polypropylene Co-Polymer (Full moulded construction) |
| Shaft | EN-8 |
| Sleeve | High Alumina Ceramic (Al2O3) |
| Adaptor | Cast iron |
| Bearing Frame | Cast iron |
| Bearing | Ball bearing (Oil lubricated) |
PT. Devsaan Industech, LTC Glodok, Jakarta Barat, DKI Jakarta 11180
Anda juga akan suka
Dijual
Centrifugal Pump Polypropylene MIPP 40-200 Pompa Sentrifugal
Centrifugal Pump Polypropylene MIPP 40-200 Pompa Sentrifugal
Polypropylene Bare Pump (Mechanical seal) - 2,5" x 1,5" - 2900 Rpm / 1450 Rpm
was Rp13.400.000
Menyimpan 4%
Rp12.864.000
Dijual
Centrifugal Pump Polypropylene MIPP 32-160 Pompa Sentrifugal
Centrifugal Pump Polypropylene MIPP 32-160 Pompa Sentrifugal
Polypropylene Bare Pump (Mechanical seal) - 2" x 1,25" - 2900 Rpm / 1450 Rpm
was Rp12.500.000
Menyimpan 4%
Rp12.000.000
Dijual

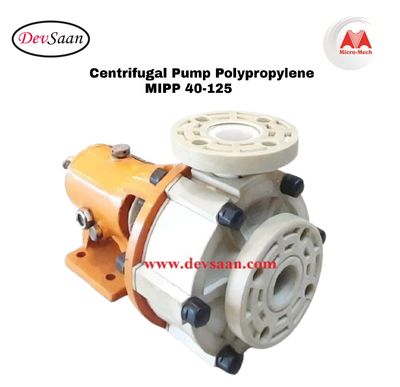

Centrifugal Pump Polypropylene MIPP 40-125 Pompa Sentrifugal
Centrifugal Pump Polypropylene MIPP 40-125 Pompa Sentrifugal
Polypropylene Bare Pump (Mechanical seal) - 1,5" x 1,5" - 2900 Rpm
was Rp10.400.000
Menyimpan 4%
Rp9.984.000
Centrifugal Pump Polypropylene MIPP 40-125 Pompa Sentrifugal (Complete Set) 2pole
Centrifugal Pump Polypropylene MIPP 40-125 Pompa Sentrifugal (Complete Set) 2pole
Polypropylene (Mechanical seal) - 1,5" x 1,5" - 2900 Rpm c/w Elektro Motor 5,5hp/4kw/2pole/B3
Rp15.270.000

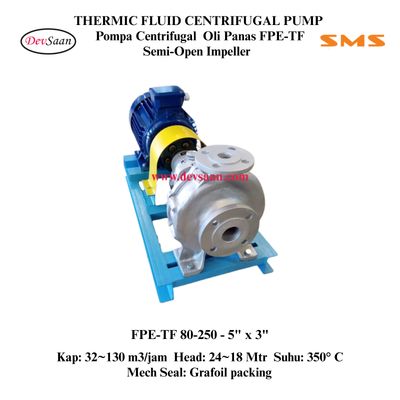

Thermic Fluid Pump FPE-TF 80-250 HDB Pompa Sentrifugal Oli Panas (Complete Set) 4pole
Thermic Fluid Pump FPE-TF 80-250 HDB Pompa Sentrifugal Oli Panas (Complete Set) 4pole
Hot oil Pump (Grafoil packing) - 5" x 3" - 1450 Rpm c/w Elektro Motor 15hp/11kw/4pole/B3
Rp64.530.000
Thermic Fluid Pump FPE-TF 50-200 Pompa Sentrifugal Oli Panas (Complete Set) 2pole
Thermic Fluid Pump FPE-TF 50-200 Pompa Sentrifugal Oli Panas (Complete Set) 2pole
Hot oil Pump (Grafoil packing) - 3" x 2" - 2900 Rpm c/w Elektro Motor 25hp/18,5kw/2pole/B3
Rp41.715.000
Thermic Fluid Pump FPE-TF 40-200 Pompa Sentrifugal Oli Panas (Complete Set) 4pole
Thermic Fluid Pump FPE-TF 40-200 Pompa Sentrifugal Oli Panas (Complete Set) 4pole
Hot oil Pump (Grafoil packing) - 2,5" x 1,5" - 1450 c/w Elektro Motor 2hp/1,5kw/4pole/B3
Rp31.905.000
Dijual

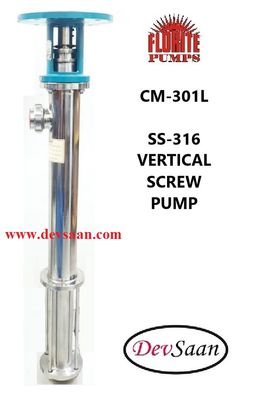

SS-316 Vertical screw pump CM-301L Pompa ulir vertikal
