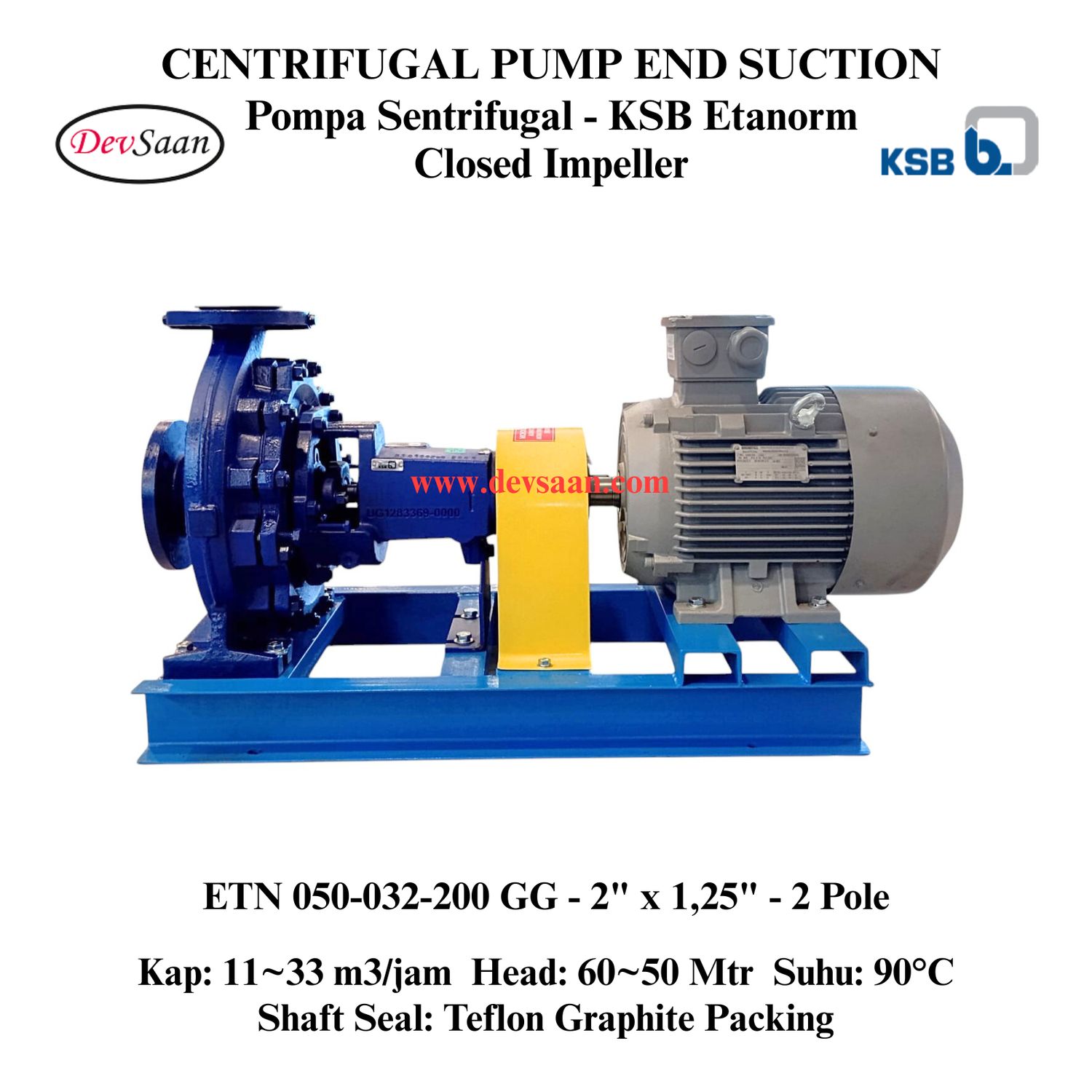

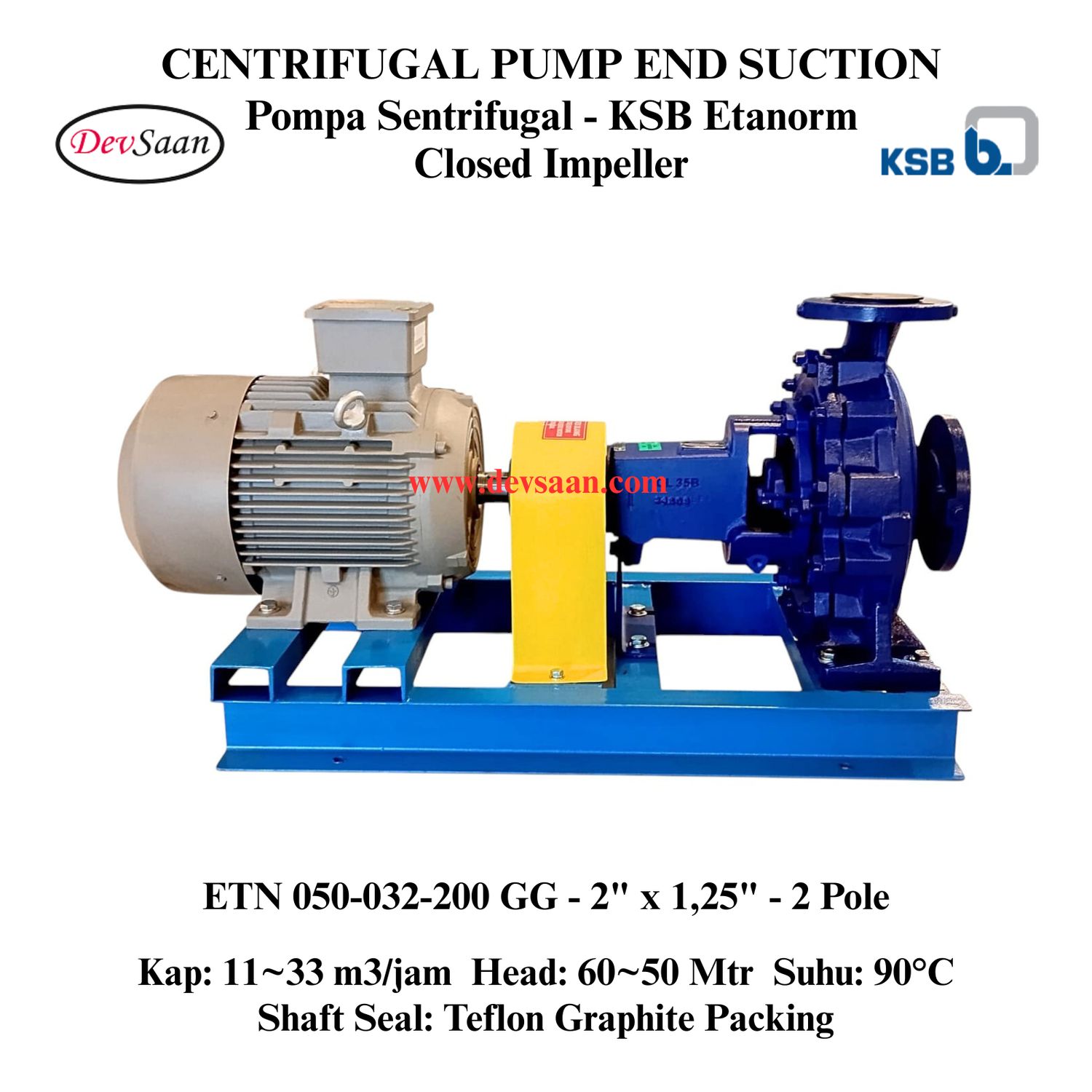

Centrifugal Pump End Suction KSB Etanorm ETN 050-032-200 GG (Complete Set) 2pole
Kode CPKPETG3220XT
Rp24.210.000
Cast iron Centrifugal Pump - 2" x 1,25" - 2900 Rpm c/w Elektro Motor 15hp/11kw/2pole/B3
Stok: 2 tersedia
1
Simpan produk ini untuk nanti
Bagikan produk ini dengan temanmu
Centrifugal Pump End Suction KSB Etanorm ETN 050-032-200 GG (Complete Set) 2pole
Rincian Produk
Model: ETN 050-032-200 GG (Complete Set) 2pole
Merek: KSB, India
Kondisi: Baru
Berat bersih: 100 Kg.
Berat: 100,00 kg
Jual Centrifugal Pump End Suction KSB ETN 050-032-200 GG Pompa Sentrifugal c/w Elektro Motor 15hp/11kw/2pole/B3
- Terkopel dengan dinamo 15 Hp (11 kW) 2 Pole merek Motology (380V 3 Fase) / Bologna (220V 1 Fase) untuk maksimal Berat jenis (Massa jenis) fluida 1,1 (1100 Kg/m3)
- Perakitan 7hari kerja.
- Merek lain dinamo bisa di request.
Aplikasi pompa sentrifugal KSB Etanorm : Aplikasi transfer & sirkulasi air di pabrik, bangunan komersial & perumahan, pengendali banjir, pertanian, pertambangan, kolam air, sistem pemanas air tenaga surya, air mancur, kolam ikan dan lain-lain.
Spesifikasi Centrifugal Pump End Suction KSB ETN 050-032-200 GG :
| Ukuran | 2" (50 mm) x 1,25" (32 mm) |
| Inlet & Outlet | Flange ANSI B.16.5 Class #15 |

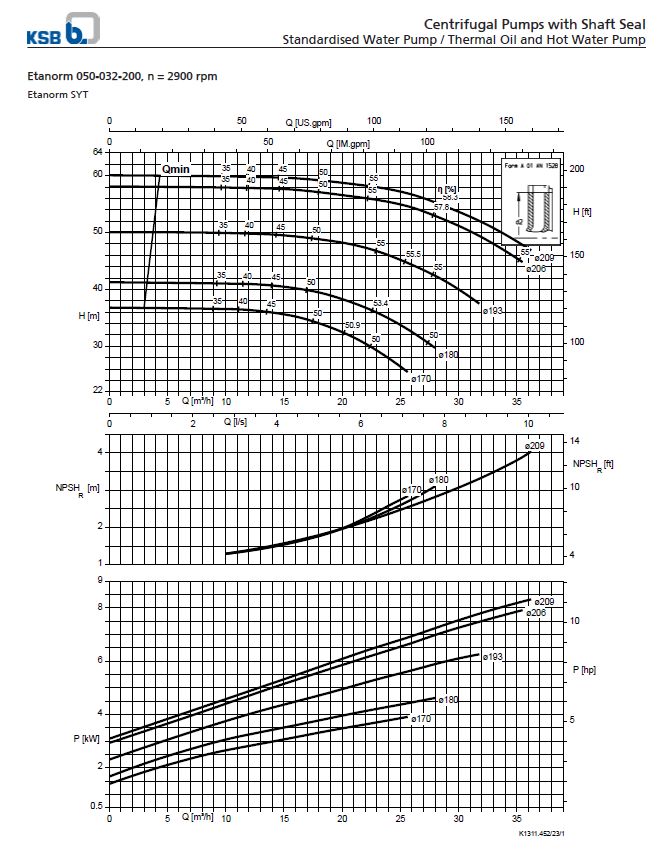

| Kapasitas / Debit (2900 Rpm) Head (Vertikal) (2900 Rpm) |
11~33 m3/jam 60~50 Mtr |
| Angkat hisap / Suction lift | Hingga 5 Mtr (Dengan Foot valve) |
| Berat jenis (Massa jenis) fluida | Hingga 1,1 (1100 Kg/m3) |
| Suhu fluida | Hingga 90° Celsius |
| Shaft seal | Teflon graphite packing |
| Shaft BkW | 7,9 kW @ 2900 Rpm |
| Kecepatan pompa | 2900 Rpm |
| Sistem perakitan | Horizontal direct inline coupling |
| Kebutuhan daya | 15 Hp (11 kW) @ 2900 Rpm |
| Impeller diameter | 209 mm |
| Tipe impeller | Tertutup (Closed) |
Bahan konstruksi Centrifugal Pump End Suction KSB ETN 050-032-200 GG :
| Casing | Grey Cast iron A 48 CL 35B |
| Impeller | Cast iron |
| Shaft | 45C8 |
| Sleeve | SS-410 |
| Bearing Frame | Cast iron |
| Bearing | Ball bearing (Grease lubricated) |
PT. Devsaan Industech, LTC Glodok, Jakarta Barat, DKI Jakarta 11180
